Application to store appointment, in C#


C# C#
Ratings:
0 Comment(s)
 7916  View(s)
Rate this:

Application to store appointment, in C#

This program basically base on store appointment or any kind of notes in selected month and year. It will show which month and year have appointment, notes or information as well we can add, delete and get data.

Example form show in which date is appointment if appointment is in many months select month from month combo box as well as year, if appointment record is available date color will be red as shown below:

Dynamic Calander to display Appointments

using System.Data.SqlClient;



namespace UserDefineControls

{

    public partialclassExample : Form

    {

        publicExample()

        {

            InitializeComponent();

        }

        intx=5,y=20;// Creating 2 int member variable for x-axis and y-axis for RichtextBox

        SqlConnection con;// con is a member variable of SqlConnection class

        RichTextBox[] rtb;//rtb  is member variable RichTextBox

        string[] m_smonth= { "January", "February", "March", "April", "May", "June", "July", "August", "September", "October", "November", "December" };// m_smonth is array that store name of months

        int[] m_nMonthDays= { 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31 };//m_nMonthDays is array that store days of month

        string[] sdays= { "Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday" };//sdays is a array that store days name

        DateTime dt;//dt is member variable

        intyear, month, day;//year,month,day variable store year ,month and day

        private voidExample_Load(objectsender, EventArgse)

        {

            con=newSqlConnection("Data Source=uttam-pc\\mindstick; user id=sa; password=mindstick; initial catalog=Detail");//creating connection

            for (inti=0; i<m_smonth.Length; i++)//for loop will execute less than of m_smonth length

            {

                cbMonth.Items.Add(m_smonth[i]);//adding month in cbMonth(combobox)

            }

            for (intc=2000; c<=2020; c++)//for loop execute from 2000 and less than equal 2020

            {

                cbYear.Items.Add(c);//adding year in cbYear(combobox)

            }

            day=m_nMonthDays[0];//day initializing m_nMonthDays which index is 0

            year=DateTime.Today.Date.Year;//year storing current year from DateTime which property is Today which property is Date which property is year

            month=DateTime.Today.Date.Month;//month variable storing current from DateTime which property is Today which property is Date which property is month

            AddRichTextBox(year,month,1);

        }

        public voidAddRichTextBox(intyear,intmonth,intdate)//creating function which have three parameter year,month and date

        {

            Detail.sappointdetailYear=year.ToString();//storing year value in static variable sappointdetailYear which is declared in Detail class

            dt=newDateTime(year, month, date);//creating object of DateTime class with three parameter

            for (inti=0; i<sdays.Length; i++)//loop executing less than length of sdays array

            {

                if (dt.DayOfWeek.ToString() ==sdays[i])//checking which day is equal to sdays index

                    break;//loop will be terminate

                else

                    x+=85;//adding 85 in x it will decide the x-axis

            }

            rtb=newRichTextBox[day];//creating object of RichTextBox day varaiable decide how many RichTextBox will be create

            int c=1;//c varaible intializing

            for (inti=0; i<rtb.Length; i++)//loop executing less than length of RichTextBox array rtb is a object of RichTextBox

            {

                rtb[i] =new RichTextBox();//creating object

                rtb[i].Name=i.ToString();//giving name of each RichTextBox

                rtb[i].Text=c.ToString();

                rtb[i].SetBounds(x, y, 80, 80);//this line decide where RichTexBox will be show

                c++;//increment of 1

                x +=85;//increment of 85 in x

                if (x>590)//checking condition x is less than 590

                {

                    x=5;//store 5 in x

                    y +=85;//y increment by 85

                }

                pRichtextBox.Controls.Add(rtb[i]);//adding RichtextBox in panel(pRichtextBox)

            }

            GetNotes();//this is function

        }

        private void cbMonth_SelectedIndexChanged(objectsender, EventArgse)

        {

            day=m_nMonthDays[cbMonth.SelectedIndex];//this line store how many days in a month

            if (DateTime.IsLeapYear(year))//checking year is a leap year or not

            {

                if (cbMonth.SelectedItem.ToString() =="February")//if month is february day will be increment by 1

                    day++;//increment by 1

            }

            PanelClear();//this a function

            month=Convert.ToInt32(cbMonth.SelectedIndex+1);//month is storing index cbMonth(combobox) increment by 1



            AddRichTextBox(year, cbMonth.SelectedIndex+1, 1);//this is a function  with three parameter year,index of cbMonth(combobox)increment by 1 and 1 is date

        }

        private void cbYear_SelectedIndexChanged(object sender, EventArgse)

        {



        }

        public voidPanelClear()//panel clear function clear all controls from panel

        {

            pRichtextBox.Controls.Clear();

            x=5;//assigning value

            y=20;//assigning value

        }

        private void cbYear_SelectedValueChanged(object sender, EventArgse)

        {

            PanelClear();//this a function

            year=Convert.ToInt32(cbYear.SelectedItem);//year storing year from combobox(cbYear)

            AddRichTextBox(cbYear.SelectedIndex+ 1, month, 1);//passing value to AddRichTextBox function

        }

        public voidGetNotes()//creating function

        {



            try

            {

                con.Open();//connection opening

                SqlCommand cmd= new SqlCommand("select days from AppointmentDetail  where year='"+year+"' and Month='"+month+"'", con);//this line return day in which have information

                SqlDataReader dr= cmd.ExecuteReader();//dr storing data

                while (dr.Read())//it will execute untill this condition become false

                {

                    int count= Convert.ToInt32(dr[0].ToString());//storing date in count variable

                    rtb[count-1].ForeColor=Color.Red;//this fill Forecolor of RichtextBox text

                    rtb[count-1].Font=newFont("Calista", 14, FontStyle.Italic);//Changing font style of Richtextbox

                    rtb[count-1].Click+=newEventHandler(rtb_Click);// generating click event on richtexbox that show information of date

                }

            }

            catch (Exception ex)

            {

                MessageBox.Show(ex.Message);//showing execption with the help of popup

            }

            finally

            {

                con.Close();//closing connection

            }

        }

        RichTextBox br;//creating variable of RichTextBox

        public voidrtb_Click(objectsender, EventArgse)

        {

            br= (RichTextBox)sender;//this line store reference on which richtextbox is clicked

            int c=0;//initailizing variable

            for (; br!=rtb[c]; c++) ;//searching which RichTextBox is clicked

            AppointmentDetail appointdetail=new AppointmentDetail();//Creating object of AppointmentDetail form

            Detail.sappointdetailDay=br.Text;//storing RichTextBox text  in static variable sappointdetailDay which is declared in Detail class

            Detail.sappointdetailYear=year.ToString();//storing year in static variable sappointdetailYear which is declared in Detail class

            appointdetail.ShowDialog();

        }



        private void cbAppointmentAddDelete_SelectedIndexChanged(objectsender, EventArgse)

        {

            if (cbAppointmentAddDelete.SelectedItem.ToString() == "Add")//checking condition

            {

                AddAppointment addapp= new AddAppointment();//Creating object of AddAppointment form for new  information, notes or appointment

                addapp.Show();//it will show form

            }

            else if (cbAppointmentAddDelete.SelectedItem.ToString() == "Delete")//checking condition

            {

                DeleteAppointmentdeletapp=new DeleteAppointment();//Creating object of AddAppointment form for delete information, notes or appointment

                deletapp.Show();

            }

        }



    }

}



AppDetail form show appointment on which data forecolor is red, red color show that day record is available as well as show date and year as shown in below.



Open another form on click on dynamically created RitchTextBox



using System.Data.SqlClient;



namespace UserDefineControls

{

    public partialclass AppointmentDetail : Form

    {

        publicAppointmentDetail()

        {

            InitializeComponent();

        }

        SqlConnection con;// con is a member variable

        private void AppointmentDetail_Load(object sender, EventArgse)

        {



            this.Text="Date--"+Detail.sappointdetailDay+"  "+"Year--"+ Detail.sappointdetailYear;//defining form name

            con=newSqlConnection("Data Source=uttam-pc\\mindstick; user id=sa; password=mindstick; initial catalog=Detail");//creating connection

            try

            {

                string data= "";//creating string variable

                con.Open();

                SqlCommand cmd= new SqlCommand("select AppDetail from AppointmentDetail where days='"+ Detail.sappointdetailDay+ "' and year='"+ Detail.sappointdetailYear+ "'", con);//this command return appointment detail

                SqlDataReader dr= cmd.ExecuteReader();//dr storing data

                if (dr.Read())//checking data avialbel or not

                {

                    data=dr[0].ToString();//sotring data in data variable

                }

                if (data== "")//checking condition

                    richTextBox1.Text="No Records";//set no records in richTextBox1

                else

                    richTextBox1.Text=data;//printing data inrichTextBox1

            }

            catch (Exception ex)

            {



                MessageBox.Show(ex.Message);

            }

            finally

            {

            }



        }

    }

}



AddAppointment form to use for add appointment, notes or information from AddAppointment we can choose year, month and date where we want on which date to add appointment, notes box provides to write add appointment ,if we click on the save button appointment will be save if we click on the cancel button form will be close.

New Appointment

using System.Data.SqlClient;



namespace UserDefineControls

{

    public partialclass AddAppointment : Form

    {

        publicAddAppointment()

        {

            InitializeComponent();



        }

        string[] m_smonth= { "January", "Febuary", "March", "April", "May", "June", "July", "August", "September", "October", "November", "December" };//m_smonth is array that store name of months

        int[] m_nMonthDays= { 31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31 };//m_nMonthDays is array that store days of month

        SqlConnection con;//con is a member variable

        intleap,days;//creating int type variable



        private voidbutton1_Click(objectsender, EventArgse)

        {

            try

            {

                int month= cbmonth.SelectedIndex;//storing index of month

                month++;//increment by 1

                con.Open();//openning connection

                SqlCommand cmd= new SqlCommand("insert AppointmentDetail values('"+cbDate.Text+ "','"+cbYear.Text+"','"+rtbNotes.Text+"','"+month+"')", con);//insert command executing

                cmd.ExecuteNonQuery();

            }

            catch (Exception ex)

            {

                MessageBox.Show(ex.Message);

            }

            finally

            {

                con.Close();

            }

        }

       private void AddAppointment_Load(objectsender, EventArgse)

       {

           cbYear.SelectedText= (DateTime.Today.Date.Year.ToString());//this line set current year in   cbYear(combobox)

           cbDate.SelectedText= (DateTime.Today.Day.ToString());//this line set current date in   cbDate(combobox)

           cbmonth.SelectedText= (m_smonth[DateTime.Today.Month-1]);//this line set current month in   cbmonth(combobox)

            con=newSqlConnection("Data Source=uttam-pc\\mindstick; user id=sa; password=mindstick; initial catalog=Detail");//creating connection

            for (intc=2000; c<=2020; c++)

            {

                cbYear.Items.Add(c);//adding year in abyear

            }

            for (inti=0; i<m_smonth.Length; i++)

            {

                cbmonth.Items.Add(m_smonth[i]);//adding month in  cbmonth

            }

        }

        private void cbYear_SelectedIndexChanged(object sender, EventArgse)

        {

             leap=Convert.ToInt32( cbYear.SelectedItem.ToString());//stroring year in leap for check is year leap or not

        }

        private void cbmonth_SelectedIndexChanged(objectsender, EventArgse)

        {

            cbDate.Items.Clear();//clearing items from cbDate

            days=cbmonth.SelectedIndex;//stroing index from cbmonth

            days=m_nMonthDays[days];//storing days index of m_nMonthDays

            if (DateTime.IsLeapYear(leap))//checking year is leap or not

            {

                days++;//increment by 1

            }

            for (intc=1; c<=days; c++)

            {

                cbDate.Items.Add(c);//adding date in cbDate

            }

        }

        private voidbtn_Click(objectsender, EventArgse)

        {

            this.Close();//form close

        }

        private void cbDate_SelectedIndexChanged(object sender, EventArgse)

        {



        }

    }

}

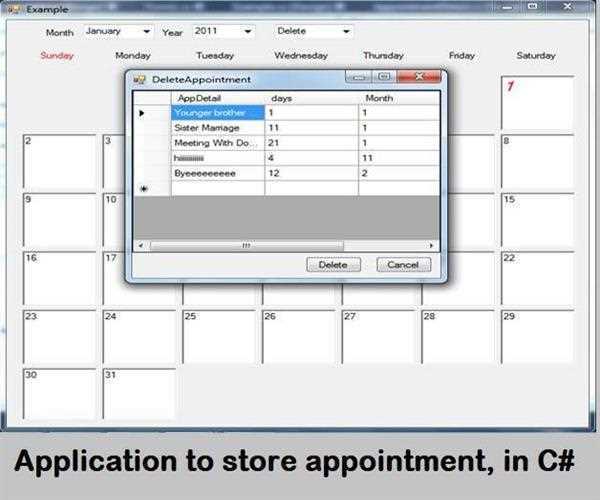

DeleteAppointment form will display all appointment, days, month in which appointment is held , when we to delete data from records click on the row, row will be select when you want to delete click on the delete button if we want to close window click on cancel button



Deleted Appointment

using System.Data.SqlClient;



namespace UserDefineControls

{

    public partialclass DeleteAppointment : Form

    {

        publicDeleteAppointment()

        {

            InitializeComponent();

        }

        SqlConnection con;// con is a member variable

        private void DeleteAppointment_Load(object sender, EventArgse)

        {

            con=newSqlConnection("Data Source=uttam-pc\\mindstick; user id=sa; password=mindstick; initial catalog=Detail");//creating connection

           try

            {

                con.Open();

                SqlCommand cmd= new SqlCommand("Select AppDetail,days,Month from AppointmentDetail where year='"+ Detail.sappointdetailYear+ "'", con);//executing sql query it will return AppDetail,days and Month

                SqlDataReader dr= cmd.ExecuteReader();//dr storing data

                DataTable dt= newDataTable();//creating object of dt

                dt.Load(dr);//dt load dr data

                dataGridView1.DataSource=dt;//this line show data in datagridview

            }

            catch (Exception ex)

            {

                MessageBox.Show(ex.Message);

            }

            finally

            {

                con.Close();

            }

        }



        private voidbutton1_Click(objectsender, EventArgse)

        {

            string day, month;//creating string type variables



            int index;//creating index to find datagridview index on which row is selected

            foreach (DataGridViewRow dr indataGridView1.SelectedRows)//executing loop

            {

                if (dr.Index!= dataGridView1.Rows.Count-1)//checking condition

                {



                    index=dr.Index;//storing index of dr in index variable

                    day =dataGridView1.Rows[index].Cells[1].Value.ToString();//storing day from datagridview for delete operation perform

                    month=dataGridView1.Rows[index].Cells[2].Value.ToString();//storing month from datagridview for delete operation perform

                    dataGridView1.Rows[index].Cells[0].Value=null;//datagridview selected cell will be blank

                    dataGridView1.Rows[index].Cells[1].Value=null;//datagridview selected cell will be blank

                    dataGridView1.Rows[index].Cells[2].Value=null;//datagridview selected cell will be blank

                    dataGridView1.Rows[index].Cells[3].Value=null;//datagridview selected cell will be blank

                   try

                    {

                        con.Open();//opening connection

                        SqlCommand cmd= new SqlCommand("delete AppointmentDetail where days='"+day+ "' and Month='"+month +"'", con);//delete opertion performing

                        cmd.ExecuteNonQuery();

                    }

                    catch (Exception ex)

                    {

                        MessageBox.Show(ex.Message);

                    }

                    finally

                    {

                        con.Close();

                    }



                }

            }

        }



        private voidbutton2_Click(objectsender, EventArgse)

        {

            this.Close();//form close

        }



        private void dataGridView1_CellContentClick(objectsender, DataGridViewCellEventArgse)

        {



        }

        private void dataGridView1_CellMouseClick(objectsender, DataGridViewCellMouseEventArgse)

        {



         }

        }

    }



SQL Server is used to store records for appointments.

SQL Server Database
