How to Print a report in mvc in pdf formate

Anonymous User 2214 29-Dec-2015
I want to  Print a report in mvc in pdf formate
.net reporting  pdf
Updated on 03-Jul-2023
Anonymous User

Anonymous User

Follow

I am a content writter !

Can you answer this question?
Answer

2 Answers

Aryan Kumar

Aryan Kumar

03-Jul-2023

Sure, here are the steps on how to print a report in MVC in PDF format:

  1. Add a PDF printer to your MVC project.
  2. Create a view that will generate the report.
  3. In the view, use the PDF printer to render the report.
  4. Bind the view to an action method.
  5. In the action method, return the view.

Here is an example of the code:

C#

public ActionResult PrintReport()
{
    // Get the PDF printer
    var pdfPrinter = new PdfPrinter();

    // Create a view that will generate the report
    var view = View("Report");

    // Render the report to the PDF printer
    pdfPrinter.Render(view);

    // Return the view
    return view;
}

This code will add a PDF printer to your MVC project. The PrintReport action method will render the report to the PDF printer and return the view.

Here is an example of the view that will generate the report:

HTML

@{
    // Get the data for the report
    var data = GetReportData();
}

<html>
<head>
    <title>Report</title>
</head>
<body>
    <h1>Report</h1>

    <table>
        <tr>
            <th>Column 1</th>
            <th>Column 2</th>
            <th>Column 3</th>
        </tr>

        @foreach (var item in data)
        {
            <tr>
                <td>@item.Column1</td>
                <td>@item.Column2</td>
                <td>@item.Column3</td>
            </tr>
        }
    </table>
</body>
</html>

This view will generate a report with three columns. The data for the report will be set in the code-behind file.

Anonymous User

Anonymous User

29-Dec-2015

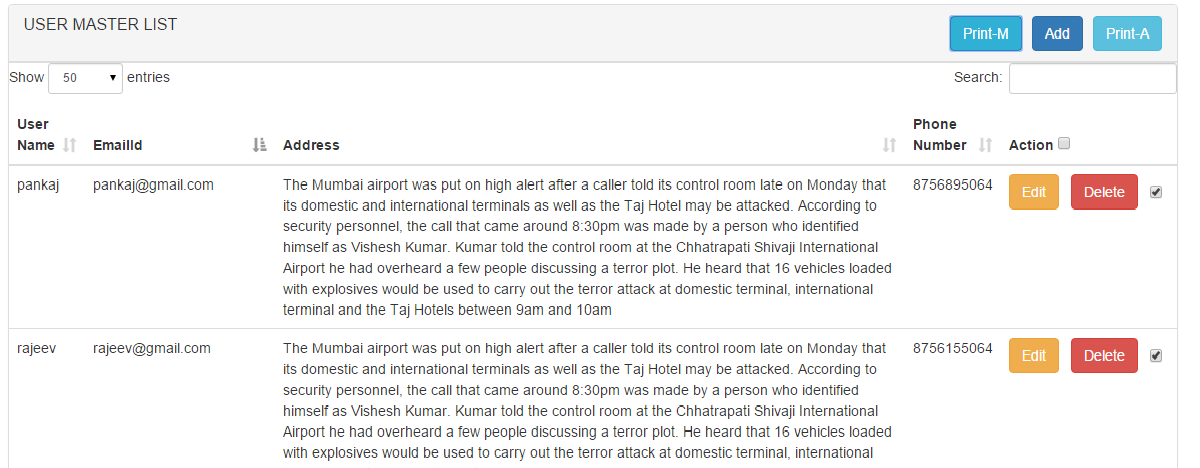

List Page

How to Print a report in mvc in pdf formate

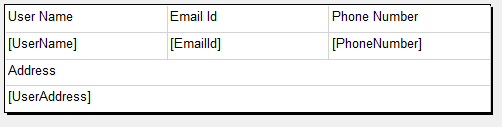

Subreport.rdlc

How to Print a report in mvc in pdf formate

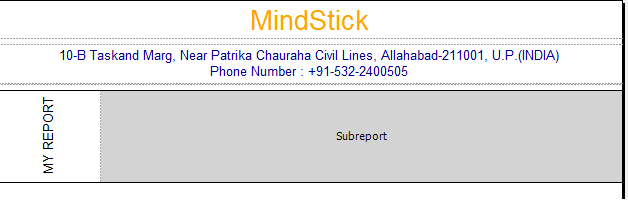

Mainreport.rdlc

How to Print a report in mvc in pdf formate

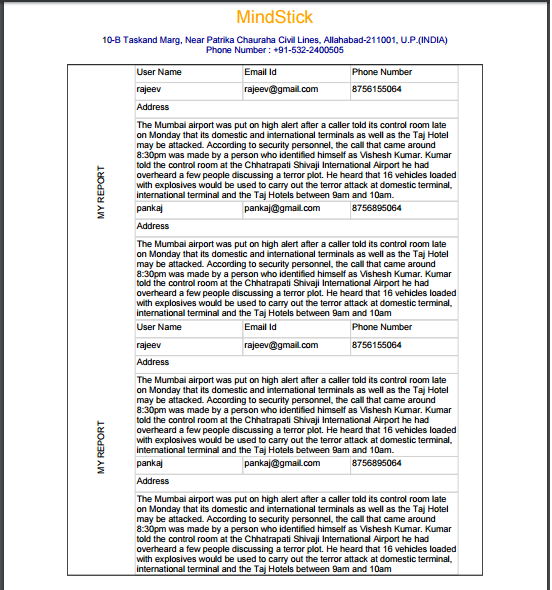

PDF PRINT OUT

How to Print a report in mvc in pdf formate

Code
 $(document).on('click', '.PrintPDF', function (e) {
        var win = window.open('../Home/PrintPDF/"'+ $('#UserIds').val().slice(0,-1)+'"', '_blank');
        console.log('click');
        if (win) {
            //Browser has allowed it to be opened
            win.focus();
        } else {
            //Broswer has blocked it
            alert('Please allow popups for this site');
        }
    });



  public ActionResult PrintPDF(string id = "27,28,29")
        {
            Session["id"] = id.TrimEnd(',');
            LocalReport localReport = new LocalReport();
            localReport.ReportPath = Server.MapPath("~/User.rdlc");
            ReportDataSource reportDataSource = new ReportDataSource();
            reportDataSource.Name = "UserDataSet";
            Reporting v = new Reporting();
            DataSet dt = new DataSet();
            dt = v.GetReport(Session["id"].ToString());
           //dt = v.GetReport("26");
            reportDataSource.Value = dt.Tables[0];
            localReport.DataSources.Add(reportDataSource);
            localReport.SubreportProcessing += localReport_SubreportProcessing;

            string reportType = "PDF";
            string mimeType;
            string encoding;
            string fileNameExtension;
            //The DeviceInfo settings should be changed based on the reportType
            string deviceInfo =
            "<DeviceInfo>" +
            "  <OutputFormat>PDF</OutputFormat>" +
            "  <PageWidth>8.5in</PageWidth>" +
            "  <PageHeight>11in</PageHeight>" +
            "  <MarginTop>0.5in</MarginTop>" +
            "  <MarginLeft>1in</MarginLeft>" +
            "  <MarginRight>1in</MarginRight>" +
            "  <MarginBottom>0.5in</MarginBottom>" +
            "</DeviceInfo>";
            Warning[] warnings;
            string[] streams;
            byte[] renderedBytes;
            //Render the report
            renderedBytes = localReport.Render(
                reportType,
                deviceInfo,
                out mimeType,
                out encoding,
                out fileNameExtension,
                out streams,
                out warnings);
            //Response.AddHeader("content-disposition", "attachment; filename=Data." + fileNameExtension);
            Response.ContentType = "application/pdf";
            Response.AddHeader("Content-length", renderedBytes.Length.ToString());
            Response.AddHeader("content-disposition", "inline;filename=Data." + fileNameExtension);
            Response.BinaryWrite(renderedBytes);
            return null;
        }
        private void localReport_SubreportProcessing(object sender, SubreportProcessingEventArgs e)
        {
            if (e.ReportPath.Equals("Subreport"))
            {
                ReportDataSource reportDataSource = new ReportDataSource();
                reportDataSource.Name = "DataSet1";
                Reporting v = new Reporting();
                DataSet dt = new DataSet();
                dt = v.GetReport(Session["id"].ToString());
                reportDataSource.Value = dt.Tables[0];
                e.DataSources.Add(reportDataSource);
            }
        }
