Cell formatting of DataGridView in .NET


C# C#
Ratings:
0 Comment(s)
 11406  View(s)
Rate this:

Cell formatting of DataGridView in .NET

What is DataGridView?

The DataGridView control for displaying data from your SQL database. Display a table from the database on the DataGridView, using DataAdapter and data logic. DataGridView control is a Windows Forms control that gives you the ability to customize and edit tabular data. It gives you number of properties, methods and events to customize its appearance and behavior. In this Demonstration we will see how we can change BackColor, ForeColor and Font of particular cell as well as all cells of particular row.

Code

public partial class Detail : Form

    {

        publicDetail()

        {

            InitializeComponent();

        }

        SqlConnection con;//creating SqlConnection class variable con

        FontDialog fnt=new FontDialog();//creating object(fnt) of FontDialog

        ColorDialog cd= new ColorDialog();//creating object(cd) of ColorDialog

        intri, ci,ro,flag=0,f=0,first=1;//creating int variable

        private voidDetail_Load(objectsender, EventArgse)

        {

            try

            {

                con =new SqlConnection("data source=uttam-pc\\mindstick; user id=sa; password=mindstick; initial catalog= detail");//creating connection from database

                con.Open();//connection opening

                SqlCommand cmd= new SqlCommand("select * from StudentDetail", con);//executing SQL query

                SqlDataReader dr= cmd.ExecuteReader();//SqlDataReader class variable storing data

                DataTable dt= newDataTable();//DataTable, which represents one table of in-memory relational data, can be created and used independently

                dt.Load(dr);//Load method is use for load all data from dr in dt



                DataGridViewButtonColumn bcol= new DataGridViewButtonColumn();//creating object of DataGridViewButtonColumn for Color

                bcol.HeaderText="Change Color ";//column name providing of button(bcol)

                bcol.Text="Color";//this line defining text of button

                bcol.Name="Color1";//this line defining name of button

                bcol.UseColumnTextForButtonValue=true;

                dataGridView1.Columns.Add(bcol);//adding color button in datagridview



                DataGridViewButtonColumn bcol1= new DataGridViewButtonColumn();//creating object of DataGridViewButtonColumn For

                bcol1.HeaderText="Change Font ";//column name providing of button(bcol)

                bcol1.Text="Font";//this line defining text of button

                bcol1.Name="Font";//this line defining name of button

                bcol1.UseColumnTextForButtonValue=true;

                dataGridView1.Columns.Add(bcol1);//adding font button in datagridview



                dataGridView1.DataSource=dt;//loading data in datagridview

            }

            catch (Exception ex)//this line will invoke when error prone situation will raise

            {

                MessageBox.Show(ex.Message);//this line will show error message

            }

            finally

            {

                con.Close();//connection closing

            }

        }

        private void dataGridView1_CellMouseClick(objectsender, DataGridViewCellMouseEventArgse)

        {

            if (e.ColumnIndex==0)//checking condition

            {

                cd.ShowDialog();//this line will show color dialog

                if (flag==0)//checking condition if flag store 0

                {

                    dataGridView1.Rows[e.RowIndex].Cells[2].Style.BackColor=cd.Color;//this line will change color of cell[2]

                    dataGridView1.Rows[e.RowIndex].Cells[3].Style.BackColor=cd.Color;//this line will change color of cell[3]

                    dataGridView1.Rows[e.RowIndex].Cells[4].Style.BackColor=cd.Color;//this line will change color of cell[4]

                    dataGridView1.Rows[e.RowIndex].Cells[5].Style.BackColor=cd.Color;//this line will change color of cell[5]

                }

                if (flag==1 &&ro==ri)//checking condition

                {

                    if (f==1)//checking condition

                    {

                        dataGridView1.Rows[ri].Cells[ci].Style.BackColor=cd.Color;//this line will change backcolor of particular cell ri store index number of cell and ci store cell index  of particular cell

                        f=0;//initializing f from 0

                    }

                    else

                        dataGridView1.Rows[ri].Cells[ci].Style.ForeColor=cd.Color;//this line will change forecolor of particular cell ri store index number of cell and ci store cell index of particular cell

                }

            }

            if (e.ColumnIndex==1)//checking condition

            {

                fnt.ShowDialog();//this line will show font dialog

                if (flag==0)//checking condition if flag store 0

                {

                    dataGridView1.Rows[e.RowIndex].Cells[2].Style.Font=fnt.Font;//this line will change font of cell[2]

                    dataGridView1.Rows[e.RowIndex].Cells[3].Style.Font=fnt.Font;//this line will change font of cell[3]

                    dataGridView1.Rows[e.RowIndex].Cells[4].Style.Font=fnt.Font;//this line will change font of cell[4]

                    dataGridView1.Rows[e.RowIndex].Cells[5].Style.Font=fnt.Font;//this line will change font of cell[5]

                }

                if (flag==1 &&ro==ri)//checking condition

                {

                    dataGridView1.Rows[ri].Cells[ci].Style.Font=fnt.Font;//this line will change backcolor of particular cell ri store index number of cell and ci store cell index  of particular cell

                }

            }

        }

        private void dataGridView1_CellDoubleClick(objectsender, DataGridViewCellEventArgse)

        {

            if (first==1)//checking condition

            {

                ro =dataGridView1.Rows[e.RowIndex].Index;//variable ro storing row index of cell

                first--;//decrement by 1

            }

            f=1;//f initializing from 1

            flag=1;//flag initializing from 1

            ri=dataGridView1.Rows[e.RowIndex].Index;//variable ri storing row index of cell

            ci=dataGridView1.Rows[e.RowIndex].Cells[e.ColumnIndex].ColumnIndex;//variable ci storing column index of cell

        }

        private voidbtnClose_Click(objectsender, EventArgse)

        {

            Application.Exit();//apllication will be close

        }

        private void dataGridView1_MouseDoubleClick(objectsender, MouseEventArgse)

        {



        }

        private void dataGridView1_CellContentClick_1(objectsender, DataGridViewCellEventArgse)

        {

            ri=dataGridView1.Rows[e.RowIndex].Index;//variable ri storing row index of cell

            ci=dataGridView1.Rows[e.RowIndex].Cells[e.ColumnIndex].ColumnIndex;//variable ci storing column index of cell

            if (first==1)//checking condition

            {

                ro =dataGridView1.Rows[e.RowIndex].Index;//variable ro storing row index of cell

                first--;//decrement by 1

            }

            if (ci==0||ci==1)//checking condition

           {

                flag=0;//flag initializing from 1

                ro =dataGridView1.Rows[e.RowIndex].Index;//variable ro storing row index of cell

            }

            else

                flag=1;//flag initializing from 1

        }

        private void dataGridView1_CellContentDoubleClick(objectsender, DataGridViewCellEventArgse)

        {

            string value=dataGridView1.Rows[e.RowIndex].Cells[e.ColumnIndex].Value.ToString();//storing data of cell in string variable(value) when cell is doubleclick

            UpdateCell upc= new UpdateCell(value);//creating object of form(UpdateCell) and with parameter

            upc.ShowDialog();//this line will show UpdateCell form

            dataGridView1.Rows[e.RowIndex].Cells[e.ColumnIndex].Value=upc.UpdateValue;//if user done any changes in data by using Updatecell form this line will append that value in particular cell

        }



    }

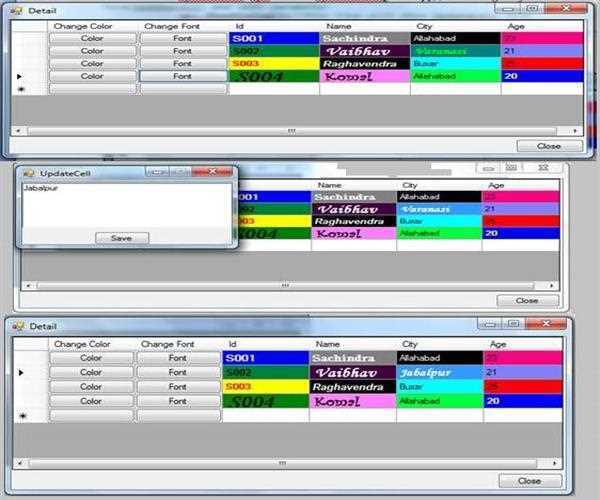

Screen Shot of DataGridView

DataGridView cell formating

Most of the times we want to update any particular cell of data, in this Demonstration just double click on the cell where want to update data you will see new window will be open, in this Demonstration I clicked on  that cell where city is  Varanasi but I want to update city Varanasi from Jabalpur as shown below:

DataGridView cell Formating

After click on the save button city name has changed where city name was Varanasi with Jabalpur as shown below:

DataGridView cell Formating
