Cascading Dropdownlist using Ajax in Asp.Net Mvc 4


ASP.NET MVC ASP.NET MVC
Ratings:
1 Comment(s)
 15631  View(s)
Rate this:

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

In this article, I’m explaining the how create cascading drop down list using ajax in asp.net mvc 4.

Step 1

First create two tables named “Country” and “State” like this:

Country Table

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

State Table

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

Create foreign key “CountryId” between these two tables.

And add some data in both the tables like this:

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

Step 2

Now create a basic asp.net mvc 4 application and add a class named “Country” to it:

using System;

using System.Collections.Generic;

using System.ComponentModel.DataAnnotations;

using System.ComponentModel.DataAnnotations.Schema;

using System.Linq;

using System.Web;



namespace CascadingDropdownlistMvcApp.Models

{

    [Table("Country")]

    public class Country

    {

        [Key]

        public int CountryId { getset; }

        public string CountryName { getset; }

    }

}



Step 3

Now add a class “State” to the project like this:

using System;

using System.Collections.Generic;

using System.ComponentModel.DataAnnotations;

using System.ComponentModel.DataAnnotations.Schema;

using System.Linq;

using System.Web;



namespace CascadingDropdownlistMvcApp.Models

{

    [Table("State")]

    public class State

    {

        [Key]

        public int Id { getset; }

        public int CountryId { getset; }

        public string StateName { getset; }

    }

}

Step 4

Now add another class named “CountryContext” to the project like this:

using System;

using System.Collections.Generic;

using System.Data.Entity;

using System.Linq;

using System.Web;



namespace CascadingDropdownlistMvcApp.Models

{

    public class CountryContext : DbContext

    {

        public DbSet<Country> Countries { getset; }

        public DbSet<State> States { getset; }



    }

}

Step 5

Now add a controller named “HomeController” to the project and write the below code in it:

using CascadingDropdownlistMvcApp.Models;

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;



namespace CascadingDropdownlistMvcApp.Controllers

{

    public class HomeController : Controller

    {

        CountryContext db = new CountryContext();



        public ActionResult Index()

        {

            return View();

        }



        public JsonResult GetCountries()

        {

            return Json(db.Countries.ToList(), JsonRequestBehavior.AllowGet);

        }



        public JsonResult GetStatesByCountryId(string countryId)

        {

            int Id = Convert.ToInt32(countryId);





            var states = from a in db.States where a.CountryId == Id select a;



            return Json(states);

        }



    }

}



Step 6

Now add a view named “Index” to the project like this:

@{

    ViewBag.Title = "Index";

}



<script src="~/Scripts/jquery-1.8.2.min.js"></script>

<script>

    $(function () {

        $.ajax({

            type: "GET",

            url: "/home/getcountries",

            datatype: "Json",

            success: function (data) {

                $.each(data, function (index, value) {

                    $('#dropdownCountry').append('<option value="' + value.CountryId + '">' + value.CountryName +'</option>');

                });

            }

        });



        $('#dropdownCountry').change(function () {



            $('#dropdownState').empty();



            $.ajax({

                type: "POST",

                url: "/home/GetStatesByCountryId",

                datatype: "Json",

                data: { countryId: $('#dropdownCountry').val() },

                success: function (data) {

                    $.each(data, function (index, value) {

                        $('#dropdownState').append('<option value="'+ value.Id+'">'+ value.StateName+'</option>');

                    });

                }

            });

        });

    });

</script>



<h2>Cascading DropDownList Sample</h2>



<div>

    <div>

        @Html.DropDownList("dropdownCountry"new SelectList(string.Empty, "Value""Text"), "Please select a country",new { @style="width:250px;"})

    </div>

    <div style="margin-top:50px;">

        @Html.DropDownList("dropdownState"new SelectList(string.Empty, "Value""Text"), "Please select a state"new{ @style="width:250px;"})

    </div>

</div>

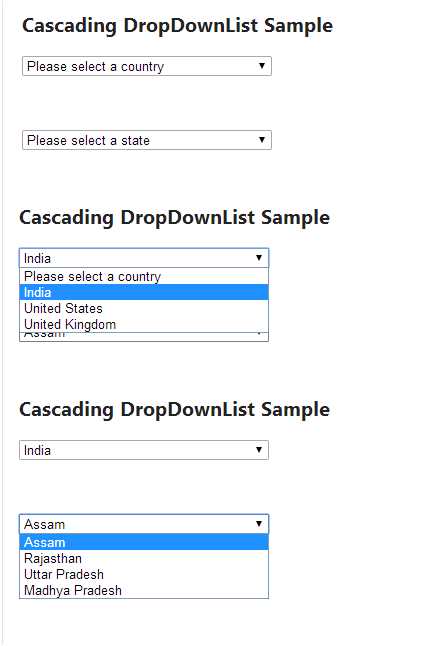

Output

Now run the application:

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4

Cascading Dropdownlist using Ajax in Asp.Net Mvc 4
