Go back previous activity without Reloading or Refreshing activity in Android

In this article I am going to demonstrate about how to go back to previous activity without reloading and refreshing the activity every time.

When we use Intent class and start activity method to back previous activity then our application refreshed again as well as takes time to reload. For use start activity method you should to know the name of previous activity. For all these reasons you can follow my steps which steps will be saved your code and time as well as your application will be run fast.

Follow the steps which are given below -:

·         Open Eclipse

·         Select New Android Application Project

·         Enter Application Name as BackNoRefresh

·         Click Next

·         Click Finish.

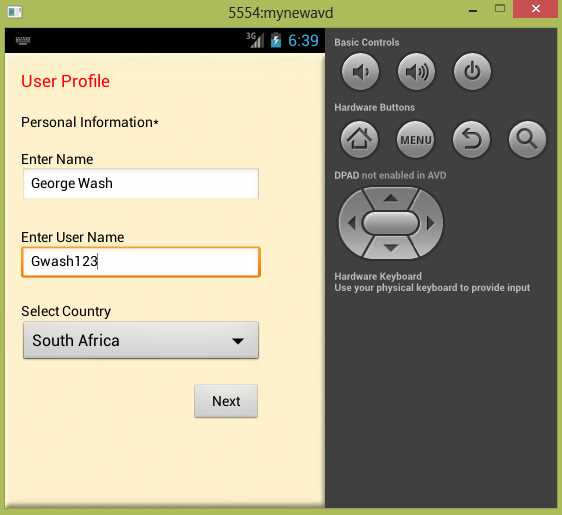

Now go to the res/layout/activity_main.xml and paste the following code

<RelativeLayoutxmlns:android="http://schemas.android.com/apk/res/android"

    xmlns:tools="http://schemas.android.com/tools"

    style="@style/Container"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:layout_gravity="center"

    android:paddingBottom="@dimen/activity_vertical_margin"

    android:paddingLeft="@dimen/activity_horizontal_margin"

   android:paddingRight="@dimen/activity_horizontal_margin"

    android:paddingTop="@dimen/activity_vertical_margin"

    tools:context=".MainActivity" >



    <TextView

        android:id="@+id/tvEName"

        android:layout_marginTop="80dp"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentTop="true"

        android:text="@string/EnterName"

        android:textColor="#000"

        android:textSize="14sp" />



    <EditText

        android:id="@+id/etUID"

        android:layout_width="240dp"

        android:layout_height="35dp"

        android:layout_alignParentLeft="true"

        android:layout_alignRight="@+id/etEname"

        android:layout_below="@+id/tvEName"

        android:ems="10"

        android:hint="@string/EName"

        android:maxLength="20"

        android:textSize="14sp" />



    <requestFocus />



    <TextView

        android:id="@+id/tvUIDName"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentLeft="true"

        android:layout_below="@+id/etUID"

        android:layout_marginTop="24dp"

        android:text="@string/Enter_name"

        android:textColor="#000"

        android:textSize="14sp" />



    <EditText

        android:id="@+id/etEname"

        android:layout_width="240dp"

        android:layout_height="35dp"

        android:layout_alignParentLeft="true"

        android:layout_below="@+id/tvUIDName"

        android:ems="10"

        android:hint="@string/UserName"

        android:maxLength="15"

        android:textSize="14sp" />



    <TextView

        android:id="@+id/tvState"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_below="@+id/etEname"

        android:layout_marginTop="20dp"

        android:text="@string/Sel_State"

        android:textColor="#000"

        android:textSize="14sp" />



    <Spinner

        android:id="@+id/spState"

        android:layout_width="240dp"

        android:layout_height="44dp"

        android:layout_below="@+id/tvState" />



    <Button

        android:id="@+id/btnSubmit"

        android:layout_marginLeft="80dp"

        android:layout_width="70sp"

        android:layout_height="40sp"

        android:layout_below="@+id/spState"

        android:layout_marginTop="19dp"

        android:layout_toRightOf="@+id/tvState"

        android:text="@string/Submt" />



    <TextView

        android:id="@+id/tvProfile"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_alignParentTop="true"

        android:text="User Profile"

        android:textColor="#000"

        android:textSize="17sp" />



    <TextView

        android:id="@+id/tvPersonalInfo"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:layout_below="@+id/tvProfile"

        android:layout_marginTop="20dp"

        android:text="Personal Information*"

        android:textColor="#000" />



</RelativeLayout>



And add a two new layout xml file name should be second.xml and third.xml

 In second.xml add the TextView and EditText for bind the user information which is coming from Main Activity.

In second.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"

    style="@style/Container"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical" >



    <TextView

        android:id="@+id/tvHead"

        android:layout_width="210dp"

        android:layout_height="wrap_content"

        android:layout_marginRight="25dp"

        android:text="@string/welcome"

        android:textSize="18sp" />



    <LinearLayout

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:orientation="vertical" >



        <TextView

            android:id="@+id/tvContact"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:layout_marginTop="30sp"

            android:text="Contact Information*"

            android:textColor="#000" />



        <TextView

            android:id="@+id/tvContact"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:layout_marginTop="30sp"

            android:text="Contact Number"

            android:textColor="#000" />



        <EditText

            android:id="@+id/etContact"

            android:layout_width="270dp"

            android:layout_height="40dp"

            android:ems="10"

            android:hint="Contact"

            android:inputType="number" />



        <TextView

            android:id="@+id/tvAddress"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:text="Address"

            android:textColor="#000" />



        <EditText

            android:id="@+id/etAddress"

            android:layout_width="270dp"

            android:layout_height="40dp"

            android:ems="10"

            android:hint="Address" />

    </LinearLayout>



    <LinearLayout

        android:layout_width="match_parent"

        android:layout_height="wrap_content" >



        <Button

            android:id="@+id/btnBack"

            android:layout_width="72dp"

            android:layout_height="40dp"

            android:layout_marginLeft="110dp"

            android:layout_marginTop="15dp"

            android:onClick="Back"

            android:text="@string/Back" />



        <Button

            android:id="@+id/btnNext"

            android:layout_width="72dp"

            android:layout_height="40dp"

            android:layout_marginLeft="10dp"

            android:layout_marginTop="15dp"

            android:onClick="GetNext"

            android:text="Next" />

    </LinearLayout>



</LinearLayout>



And third.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android"

    style="@style/Container"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="vertical" >



    <TextView

        android:id="@+id/tvWelcome"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Welcome"

        android:textColor="#000" />



    <TextView

        android:layout_marginTop="25dp"

        android:id="@+id/tvOtherInfo"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Other Information *"

        android:textColor="#000" />



    <TextView

        android:layout_marginTop="30dp"

        android:id="@+id/textView3"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Marital Status-:"

        android:textColor="#000" />



    <Spinner

        android:id="@+id/spinCheckMarried"

        android:layout_width="match_parent"

        android:layout_height="wrap_content" />



    <TextView

        android:id="@+id/tvNationality"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:text="Nationality"

        android:textColor="#000" />



    <EditText

        android:id="@+id/etNationality"

        android:hint="Nationality"

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:ems="10" >



        <requestFocus />

    </EditText>





    <LinearLayout

        android:layout_width="match_parent"

        android:layout_height="wrap_content"

        android:orientation="horizontal" >



        <Button

            android:layout_marginLeft="39dp"

            android:id="@+id/btnBack"

            android:layout_width="75dp"

            android:layout_height="50dp"

            android:text="Back" />



    <Button

          android:layout_marginLeft="39dp"

        android:id="@+id/btnFinish"

        android:layout_width="75dp"

        android:layout_height="50dp"

        android:text="Finish" />

    </LinearLayout>



</LinearLayout>





Define the activity in AndroidManifest.xml

  <activity android:name="com.example.backnorefresh.Second"

              android:theme="@android:style/Theme.NoTitleBar"/>

        <activity android:name="com.example.backnorefresh.Third"

              android:theme="@android:style/Theme.NoTitleBar"/>

    </application>



Now write the following code in MainActivity.java

In MainActivity.java send the User Name to another activity by using Intent class.

package com.example.backnorefresh;



public class MainActivity extends Activity {

                TextView tvProfile;

                EditText etUname;

                EditText etUid;

                EditText etContact;

                ListView lvState;

                Spinner spState;

                Button btnSubmit;



// ArrayAdapter is defined for set the value  Country list in spinner control



                ArrayAdapter<String> adapter;

                ArrayList<String> stateList = new ArrayList<String>();



                @Override

                protected void onCreate(Bundle savedInstanceState) {



                                // TODO Auto-generated method stub

                                super.onCreate(savedInstanceState);

                                super.onResume();

                                setContentView(R.layout.activity_main);

                                btnSubmit = (Button) findViewById(R.id.btnSubmit);

                                etUname = (EditText) findViewById(R.id.etUID);

                                etUid = (EditText) findViewById(R.id.etEname);

                                tvProfile = (TextView) findViewById(R.id.tvProfile);

//Set the country name in statelist which ArrayList, defined on the top

                                stateList.add("Africa");

                                stateList.add("Australia");

                                stateList.add("Belgium");

                                stateList.add("Brazil");

                                stateList.add("Canada");

                                stateList.add("China");

                                stateList.add("Europe");

                                stateList.add("France");

                                stateList.add("Greenland");

                                stateList.add("Iceland");

                                stateList.add("India");

                                stateList.add("Japan");

                                stateList.add("Maxico");

                                stateList.add("New Zealand");

                                stateList.add("South Africa");

                                stateList.add("Turkey");

                                stateList.add("United States");

                                spState = (Spinner) findViewById(R.id.spState);



// In Array adapter set the statelist and In Spinner control set the ArrayAdapter



                                adapter = new ArrayAdapter<String>(this,

                                                                android.R.layout.simple_spinner_item, stateList);

                                adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);

                                spState.setAdapter(adapter);

                                tvProfile.setTextColor(Color.RED);



                                btnSubmit.setOnClickListener(new View.OnClickListener() {



                                                @Override

                                                public void onClick(View v) {

                                                                // TODO Auto-generated method stub

                                                                new Thread(new Runnable() {



                                                                                @Override

                                                                                public void run() {

                                                                                                // TODO Auto-generated method stub

                                                                                                try {

                                                                                                                Intent intent = new Intent(MainActivity.this,

                                                                                                                                                Second.class);

                                                                                                                String sUname = etUname.getText().toString();



                                                            // Insert the value in Intent which is forward in another activity

                                                                                                                intent.putExtra("user", sUname);

                                                                                                                startActivity(intent);

                                                                                                } catch (Exception ex) {

                                                                                                                Toast.makeText(getApplicationContext(),

                                                                                                                                                ex.toString(), Toast.LENGTH_LONG).show();

                                                                                                }

                                                                                }

                                                                }).start();



                                                }

                                });



                }

}}



And write the following code in Second.java

package com.example.backnorefresh;



@SuppressLint("ResourceAsColor")

public class Second extends Activity {



      TextView tvHead, tvUname, tvUid, tvContact, tvState;

      Button btnBack, btnNext;

      EditText etuser;



      @Override

      protected void onCreate(Bundle savedInstanceState) {

            // TODO Auto-generated method stub

            super.onCreate(savedInstanceState);

            setContentView(R.layout.second);

            try {



                  tvHead = (TextView) findViewById(R.id.tvHead);

                  tvHead.setTextColor(Color.RED);

                  String sUser = (String) getIntent().getExtras().get("user");

                  tvHead.setText("Welcome -: " + sUser);

            } catch (Exception ex) {

                  Toast.makeText(getApplicationContext(), ex.toString(),

                              Toast.LENGTH_LONG).show();

            }



      }



      @Override

      public void onBackPressed() {

            // Write your code here

            super.onBackPressed();

      }



      public void Back(View v) {

            onBackPressed();

      }



      public void GetNext(View view) {

            try {

                  Intent intent = new Intent(Second.this, Third.class);



                  String sName = (String) getIntent().getExtras().get("user");

                  intent.putExtra("name", sName);

                  startActivity(intent);

            } catch (Exception ex) {

                  Toast.makeText(getApplicationContext(), ex.toString(),

                              Toast.LENGTH_LONG).show();

            }

      }

}



And now write the following code in Third.java

package com.example.backnorefresh;



public class Third extends Activity {



                TextView tvUserName,tvFname,tvMname;

      Button btnBack;        Button btnBack;

                                @Override

                protected void onCreate(Bundle savedInstanceState) {

                                // TODO Auto-generated method stub



                                super.onCreate(savedInstanceState);

                                setContentView(R.layout.third);



            tvUserName = (TextView) findViewById(R.id.tvWelcomeUser);

            tvFname=(TextView)findViewById(R.id.tvFname);

            tvMname=(TextView)findViewById(R.id.tvMname);

            btnBack = (Button) findViewById(R.id.btnBack);

            String sUserName = (String) getIntent().getExtras().get("Uname");

            String sFName = (String) getIntent().getExtras().get("Fathername");

            String sMName = (String) getIntent().getExtras().get("Mothername");

            tvUserName.setTextColor(Color.RED);

            tvUserName.setTextSize(20);

            tvUserName.setText("Welcome -:  " + sUserName);

            tvFname.setText("Father Name-: "+sFName);

            tvMname.setText("Mother Name-:  "+sMName);                               btnBack.setOnClickListener(new View.OnClickListener() {



                //This code will be back in previous activity

                                                                                @Override

                                                public void onClick(View v) {

                                                                try {



                                                                                onBackPressed();



                                                                } catch (Exception ex) {

                                                                                Toast.makeText(getApplicationContext(), ex.toString(),

                                                                                                                Toast.LENGTH_LONG).show();

                                                                }

                                                }

                                });



                }



                @Override

                public void onBackPressed() {

                                // Write your code here



                                super.onBackPressed();

                }

}



Now run your Application, output like this

Go back previous activity without Reloading or Refreshing activity in Android

Enter the value in form fields (Name, User Name, and Country). Click on Next button.

Go back previous activity without Reloading or Refreshing activity in Android

It will open a new activity

 Go back previous activity without Reloading or Refreshing activity in Android

Fill your Contact Number and Address or click back button.





After click back button, back the previous activity without refresh or reload

Go back previous activity without Reloading or Refreshing activity in Android

If you are fill your Father Name and Mother name then click Next button

Go back previous activity without Reloading or Refreshing activity in Android



Now a new activity will be open

Go back previous activity without Reloading or Refreshing activity in Android

In Back button click the previous activity will be open without refreshing and reloading.

Go back previous activity without Reloading or Refreshing activity in Android

If Fill your marital status and Nationality then click finish

Go back previous activity without Reloading or Refreshing activity in Android

If you click Finish button then you will get a message and new refresh page will be open

Go back previous activity without Reloading or Refreshing activity in Android

Thanks for reading this article. You can enter your valuable comments and suggestion to improve this article in the comment box.




Don't want to miss updates? Please click the below button!

Follow MindStick
