Introduction

Here I will describe how to show Expandable/ Collapsible rows in datagrid in C#

This is applicable to those cases where we have to display master and child content / rows.

Example Student Table

Here in this example we have list of Students and inside we have details of student marks

Expandable and Collapsible Rows in Datagrid in C# Winforms

Details View


Expandable and Collapsible Rows in Datagrid in C# Winforms

Our purpose is to display this type of data using C#  Winforms

Expected Output in window forms would be

Expandable and Collapsible Rows in Datagrid in C# Winforms



Expandable and Collapsible Rows in Datagrid in C# Winforms





Steps and Code:

  1. First we need to create Master and child tables.
  2. To identify the relationship between tables we should have Primary and Foreign Keys in tables
  3. Here we are creating datatable for master and child tables.
  4. Master table  (student)

                //Parent table

            DataTable dtstudent = new DataTable();

            dtstudent.Columns.Add("Student_ID"typeof(int));

            dtstudent.Columns.Add("Student_Name"typeof(string));

            dtstudent.Columns.Add("Student_RollNo"typeof(string));



  1. Child Table (Student Marks)

//Child table

            DataTable dtstudentMarks = new DataTable();

            dtstudentMarks.Columns.Add("Student_ID"typeof(int));

            dtstudentMarks.Columns.Add("Subject_ID"typeof(int));

            dtstudentMarks.Columns.Add("Subject_Name"typeof(string));

            dtstudentMarks.Columns.Add("Marks"typeof(int));



f.  Understanding Relation ship between Master and child table

Expandable and Collapsible Rows in Datagrid in C# Winforms

g.  In brief

dtstudent.StudentID = dtstudentMarks.StudentID



  1. Adding Rows to Master table (Student Table)

//Adding Rows



            dtstudent.Rows.Add(111, "Devesh""03021013014");

            dtstudent.Rows.Add(222, "ROLI""0302101444");

            dtstudent.Rows.Add(333, "ROLI Ji""030212222");

            dtstudent.Rows.Add(444, "NIKHIL""KANPUR");



i.  Adding Row to Child table (Student Marks table)

   // data for devesh ID=111

            dtstudentMarks.Rows.Add(111, "01","Physics", 99);

            dtstudentMarks.Rows.Add(111, "02","Maths", 77);

            dtstudentMarks.Rows.Add(111, "03","C#", 100);

            dtstudentMarks.Rows.Add(111, "01","Physics", 99);





            //data for ROLI ID=222

            dtstudentMarks.Rows.Add(222, "01""Physics", 80);

            dtstudentMarks.Rows.Add(222, "02""English", 95);

            dtstudentMarks.Rows.Add(222, "03""Commerce", 95);

            dtstudentMarks.Rows.Add(222, "01""BankPO", 99);





  1. Adding master and child table to dataset.

DataSet dsDataset = new DataSet();

           dsDataset.Tables.Add(dtstudent);

            dsDataset.Tables.Add(dtstudentMarks);

  1. Defining relationship between Master and child table

DataRelation Datatablerelation = new DataRelation("DetailsMarks", dsDataset.Tables[0].Columns[0], dsDataset.Tables[1].Columns[0],true);

            dsDataset.Relations.Add(Datatablerelation);





l.  Adding Datagrid control in winforms

As per screen below we can add datagrid to winforms

Right click in tool bar -> choose item





Expandable and Collapsible Rows in Datagrid in C# Winforms



m.    Binding data

dataGrid1.DataSource = dsDataset.Tables[0];



n.      All code together

private void Form1_Load(object sender, EventArgs e)

        {

            //Parent table

            DataTable dtstudent = new DataTable();

            // add column to datatable

            dtstudent.Columns.Add("Student_ID"typeof(int));

            dtstudent.Columns.Add("Student_Name"typeof(string));

            dtstudent.Columns.Add("Student_RollNo"typeof(string));





            //Child table

            DataTable dtstudentMarks = new DataTable();

            dtstudentMarks.Columns.Add("Student_ID"typeof(int));

            dtstudentMarks.Columns.Add("Subject_ID"typeof(int));

            dtstudentMarks.Columns.Add("Subject_Name"typeof(string));

            dtstudentMarks.Columns.Add("Marks"typeof(int));







            //Adding Rows



            dtstudent.Rows.Add(111, "Devesh""03021013014");

            dtstudent.Rows.Add(222, "ROLI""0302101444");

            dtstudent.Rows.Add(333, "ROLI Ji""030212222");

            dtstudent.Rows.Add(444, "NIKHIL""KANPUR");



                // data for devesh ID=111

            dtstudentMarks.Rows.Add(111, "01","Physics", 99);

            dtstudentMarks.Rows.Add(111, "02","Maths", 77);

            dtstudentMarks.Rows.Add(111, "03","C#", 100);

            dtstudentMarks.Rows.Add(111, "01","Physics", 99);





            //data for ROLI ID=222

            dtstudentMarks.Rows.Add(222, "01""Physics", 80);

            dtstudentMarks.Rows.Add(222, "02""English", 95);

            dtstudentMarks.Rows.Add(222, "03""Commerce", 95);

            dtstudentMarks.Rows.Add(222, "01""BankPO", 99);







            DataSet dsDataset = new DataSet();

            //Add two DataTables  in Dataset



            dsDataset.Tables.Add(dtstudent);

            dsDataset.Tables.Add(dtstudentMarks);





            DataRelation Datatablerelation = new DataRelation("DetailsMarks", dsDataset.Tables[0].Columns[0], dsDataset.Tables[1].Columns[0], true);

            dsDataset.Relations.Add(Datatablerelation);

            dataGrid1.DataSource = dsDataset.Tables[0];



        }

o.      Running code

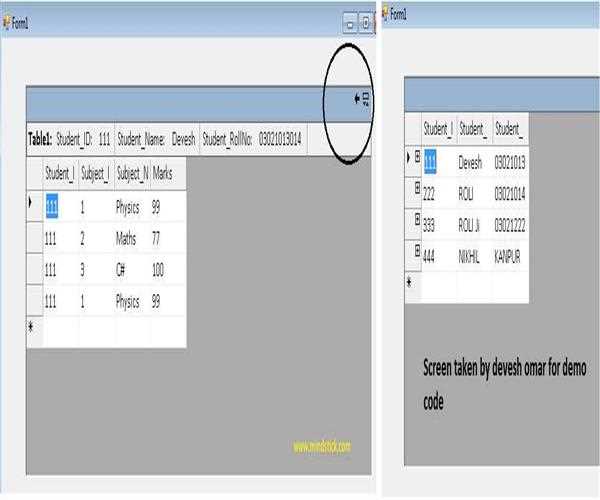

We will get following screen having expandable rows in datagrid.

Expandable and Collapsible Rows in Datagrid in C# Winforms

p.      Expanding row to see details



Expandable and Collapsible Rows in Datagrid in C# Winforms



q.      Click on DetailsMarks to get Marks details



Expandable and Collapsible Rows in Datagrid in C# Winforms



r.        Details screen for student_Id=222



Expandable and Collapsible Rows in Datagrid in C# Winforms



s.       Go to back for Master details

Click on highlighted back button to go master detail form



Expandable and Collapsible Rows in Datagrid in C# Winforms



t.        Main form

Expandable and Collapsible Rows in Datagrid in C# Winforms



Conclusion



We have learned how to show data in datagrid with master and child relationship.

Also this code can be used directly in project but you need to change this code according to requirement
