This article discusses about searching text from existing table. In this demonstration I’m going to explain you how can you use SQL query for finding a particular record from table, based on user input keyword. For making this demonstration I’ve used Visual Studio Express 2012 with framework 4.5, SQL Server 2008 and Windows 8 Operating System. Steps are given below

Step 1: First, create a table and insert some data. Below I’ve shown my table schema with data.

-- Create database e.g. MindStick_Demo

CREATE DATABASE MindStick_Demo
-- Used above created database
USE MindStick_Demo

-- Create table e.g. SearchDetails
CREATE TABLE SearchDetails
(
[ID] BIGINT IDENTITY PRIMARY KEY,
[Name] VARCHAR(50),
[Designation] VARCHAR(50),
[Domain] VARCHAR(50),
[Task] VARCHAR(MAX)
)

-- Insert data into SearchDetails table
INSERT INTO [SearchDetails]([Name],[Designation],[Domain],[Task]) VALUES('Samuel Fernandes','Software Developer','.NET, PHP, Database','Procedure,Function,MVC 4, ASP.NET, JSON, JQuery, JavaScript,IIS')
INSERT INTO [SearchDetails]([Name],[Designation],[Domain],[Task]) VALUES('Takeshi Okada','Jr. Software Developer','.NET','Windows Application,Procedure,Function,MVC 4, ASP.NET, JSON, JQuery, JavaScript,IIS')
INSERT INTO [SearchDetails]([Name],[Designation],[Domain],[Task]) VALUES('Alexander Sabato','Jr. Software Developer','.NET, Database','Procedure, Function, MVC 4, ASP.NET, JQuery, JavaScript,Web Service, Windows Application')
INSERT INTO [SearchDetails]([Name],[Designation],[Domain],[Task]) VALUES('Benjamin Richards','Software Developer','.NET,Testing','Procedure,Function,MVC 4, ASP.NET, JQuery, JavaScript')

 Step 2: Open MVC Project in your Visual Studio with empty template as below image


Search Functionality in ASP.NET MVC 4

Step 3:  Create controller and write following lines of code.

using System;

using System.Collections.Generic;
using System.Linq;
using System.Web.Mvc;
using SimpleSearch.Models;

namespace SimpleSearch.Controllers
{
    public class HomeController : Controller
    {
        protected List<string> keywords = new List<string>();
        public ActionResult Index()
        {
            ViewBag.Message = false;
            return View();
        }

        /// <summary>
        /// Get value from view textbox and send to model
        /// </summary>
        /// <param name="txtValue"></param>
        /// <returns></returns>
        [HttpPost]
        public ActionResult Index(string txtValue)
        {
            // Check length before for process
            if (txtValue.Length > 0)
            {
                // Turn user input to a list of keywords.
                string[] keywords = txtValue.Trim().Split(new string[] { " " }, StringSplitOptions.RemoveEmptyEntries);
                this.keywords = keywords.ToList();
                DisplayData dataAccess = new DisplayData();

                // call search method and passed generated keyword
                List<Content> list = dataAccess.Search(this.keywords);
                return View(list);
            }
            else
            {
                // If no keyword are entered than send error message to user
                ViewBag.Message = true;
                return View();
            }
        }
    }

Note: In the above code, for textbox validation I have used ViewBag.  For used proper validation in MVC, read below article.

https://www.mindstick.com/Articles/871/validation-in-asp-dot-net-mvc3

Step 4: Create model (e.g. Content) where we make properties and methods that

access by controller and view. Line of code are given below


using System.Collections.Generic;

using System.Configuration;
using System.Data.SqlClient;
using System.Text;

namespace SimpleSearch.Models
{

    /// <summary>
    /// This class is used to create properties
    /// </summary>
    public class Content
    {
        public long lID { get; set; }
        public string sName { get; set; }
        public string sDesignation { get; set; }
        public string sDomain { get; set; }
        public string sTask { get; set; }
    }

    /// <summary>
    /// This class is used to access database.
    /// </summary>
    public class DisplayData
    {
        /// <summary>
        /// Search records from database.
        /// </summary>
        /// <param name="keywords">the list of keywords</param>
        /// <returns>all found records</returns>
        public List<Content> Search(List<string> keywords)
        {
            // Generate a complex Sql command.
            StringBuilder sqlBuilder = new StringBuilder();
            sqlBuilder.Append("select * from [SearchDetails] where ");
            foreach (string item in keywords)
            {
                sqlBuilder.AppendFormat("([Name] like '%{0}%' or [Designation] like '%{0}%' or [Domain] like '%{0}%' or [Task] like '%{0}%') and ", item);
            }

            // Remove unnecessary string " and " at the end of the command.
            string sql = sqlBuilder.ToString(0, sqlBuilder.Length - 5);

            return QueryList(sql);
        }

        /// <summary>
        /// Excute a Sql command.
        /// </summary>
        /// <param name="cmdText">Command text</param>
        /// <returns></returns>
        protected List<Content> QueryList(string cmdText)
        {
            List<Content> ctn = new List<Content>();

            SqlCommand cmd = GenerateSqlCommand(cmdText);
            using (cmd.Connection)
            {
                SqlDataReader reader = cmd.ExecuteReader();

                // Transform records to a list.
                if (reader.HasRows)
                {
                    while (reader.Read())
                    {
                        ctn.Add(ReadValue(reader));
                    }
                }
            }
            return ctn;
        }

        /// <summary>
        /// Create a connected SqlCommand object.
        /// </summary>
        /// <param name="cmdText">Command text</param>
        /// <returns>SqlCommand object</returns>
        protected SqlCommand GenerateSqlCommand(string cmdText)
        {
            // Read Connection String from web.config file.
            SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["dbConnection"].ConnectionString);
            SqlCommand cmd = new SqlCommand(cmdText, con);
            cmd.Connection.Open();
            return cmd;
        }

        /// <summary>
        /// Create an Content object from a SqlDataReader object.
        /// </summary>
        /// <param name="reader"></param>
        /// <returns></returns>
        protected Content ReadValue(SqlDataReader reader)
        {
            Content obj = new Content();

            obj.lID = (long)reader["ID"];
            obj.sName = (string)reader["Name"];
            obj.sDesignation = (string)reader["Designation"];
            obj.sDomain = (string)reader["Domain"];
            obj.sTask = (string)reader["Task"];
            return obj;
        }
    }

Note: Set database connection string in your application’s web.config as below line of code.

For Windows Authentication

<configuration>

 <connectionStrings>
    <add name="dbConnection" connectionString="Data Source=(local); Initial Catalog=MindStick_Demo; Integrated Security=True;" providerName="System.Data.SqlClient"/>
  </connectionStrings>
</configuration>

For SQL Server Authentication


<configuration>
 <connectionStrings>
    <add name="dbConnection" connectionString="Data Source=SeverName; Initial Catalog=MindStick_Demo; User id = XXXXX; Password = XXXXX" providerName="System.Data.SqlClient"/>
  </connectionStrings>
</configuration>

 Step 5: Create View (e.g. Index) and use below lines of code

@model IEnumerable<SimpleSearch.Models.Content>


@{
    Layout = null;
}

<!DOCTYPE html>

<html>
<head>
    <meta name="viewport" content="width=device-width" />
    <title>Index</title>
    <style type="text/css">
        table, td, th {
            border: 1px solid green;
        }

        th {
            background-color: green;
            color: white;
        }
    </style>
</head>
<body>
    <div style="background-color: lightblue; height: 100px; padding-top: 10px;">
        <span style="text-align: center;">
            <h1> Search Functionality in ASP.NET MVC 4</h1>
        </span>
    </div>
    <div>
        <table style="margin-left: 35%; margin-top: 10px; border: none;">
            <tr>
                @using (Html.BeginForm())
                { <td style="border: none;">
                    <label id="lblName">Enter Keyword</label></td>
                    <td style="border: none;">@Html.TextBox("txtValue")</td>
                    <td style="border: none;">
                        <input id="btnSearch" type="submit" value="Search" /></td>
                }
            </tr>
        </table>
    </div>
    <div>
        @if (ViewBag.Message == true)
        {
            <label id="lblMessage" title="Please enter keyword" style="color:red;">Please enter keyword...!</label>
        }
        else
        {
            if (Model != null)
            {
                if (Model.Count() != 0)
                {
            <table style="border: 2px solid LightGray;">
                <tr>
                    <th>Name</th>
                    <th>Designation</th>
                    <th>Domain</th>
                    <th>Task</th>
                </tr>
                @foreach (var item in Model)
                {
                    <tr>
                        <td>@item.sName</td>
                        <td>@item.sDesignation</td>
                        <td>@item.sDomain</td>
                        <td>@item.sTask</td>
                    </tr>
                }
            </table>
                }
                else
                {
            <label id="lblErrorMsg" title="Record not fount...!" style="color:red;">Record not found...!</label>
                }
            }
        }
    </div>
</body>
</html>

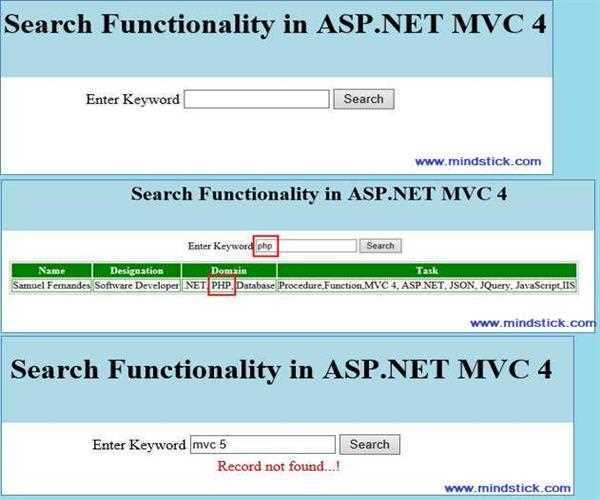

Step 6: Build your application. Now it is time for a coffee and executes your application.


Search Functionality in ASP.NET MVC 4

Step 7: Enter valid keyword which you insert into database. For example if you search php domain than result will be populate as below image.


Search Functionality in ASP.NET MVC 4

If you’ve entered a wrong keyword which does not exist in your table then “Record not found!” will be visible.

Search Functionality in ASP.NET MVC 4
