Simple Registration Form using JAVA Swing - Step2 (Connecting GUI with MySQL Database using JDBC)

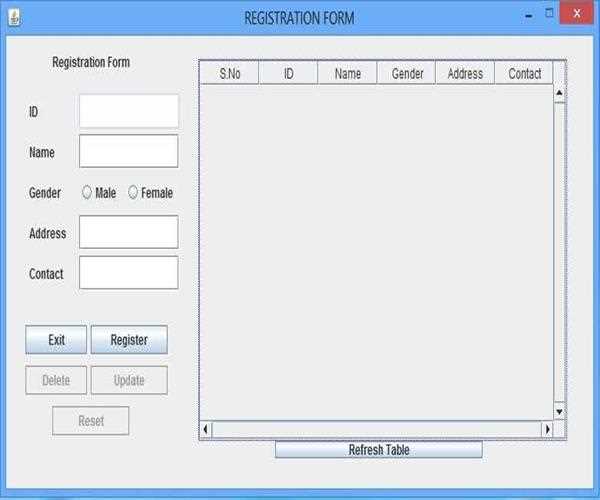

Previously we have seen how to  create a simple registration form in the swing

: Simple Registration form using Java Swing -

Step-1

  • Introduction of MySQL:

    I think MySQL software is one of the most popular open-source relational SQL database management systems in the world. MySQL is one of the best RDBMS being used for developing web-based software applications.

    The Database: A database is a separate application that stores a collection of data. Every database has one or more distinct APIs for creating, accessing, managing, searching and replicating the data it holds.

    RDBMS: The Relational Database Management System (RDBMS) is a software that enables you to implement a database with tables, columns, and indexes. It is sure that the Referential Integrity between rows of various tables. it's almost all Updates the indexes automatically. If we describe a SQL query we find that An SQL query and combine information from various tables.

     Definitions Related to Database:
    • A Database: The database is a collection of tables, with related data.
    • A Database Table: The table is a matrix with data. The table in a database looks like a simple spreadsheet.
    • The Table Columns: A column(of a Table) contain data of one and the same kind, for example, the column postcode.
    • The Table Row: A row  (= tuple, entry or record) is a group of related data, for example, the data of one subscription.
    • Redundancy: The storing data twice, redundantly to make the system faster.
    • The Primary Key: A primary key is unique. A key-value can’t occur twice in one table. With the help of a key, we can find at most one row.
    • The Foreign Key: A foreign key is a linking pin between two tables.
    • The Compound Key: A compound key (composite key) is a key that consists of multiple columns because one column is not sufficiently unique.
    • The Index: An index in a database resembles an index at the back of a book.
    • The Referential Integrity: That is the Referential Integrity makes sure that a foreign key value

     In this Registration Form we will use some other packages, packages are:

    java.swing.table.DefaultTableModel; DefaultTableModel returns a column class of Object. It is an implementation of TableModel that uses a Vector of Vectors to store the cell value objects.

    A code like 'java.sql.Connection' : It is a connection (session) with a specific database. These SQL statements are executed and results are returned within the context of a connection. The Connection object's database is able to provide information describing its tables.

    java.sql.PreparedStatement:- The SQL statement is precompiled and stored in a PreparedStatement object. These objects can then be used to efficiently execute this statement multiple times.

    java.sql.ResultSet:- A data table representing a database result set, which is usually generated by executing a statement that queries the database. Here the ResultSet object maintains a cursor pointing to its current row of data. In the beginning, the cursor is positioned before the first row. And the next method moves the cursor to the next row, and because it returns false when there are no more rows in the ResultSet object, it can be applied within a while loop to repeat through the result set.

    java.sql.Statement:- An object used for executing a static SQL statement and returning the results it produces. In a general way, The only one ResultSet object per Statement object can be open at the same time. So, if the reading of one ResultSet object is interleaved with the reading of another, each must have been generated by different Statement objects. Each execution methods in the Statement interface implicitly close a statement current ResultSet object if an open one exists.

    This is like - 'java.awt.event':- These are provides interfaces and classes for dealing with different types of events fired by AWT components.

    This is like - java.awt.Toolkit:- These classes are the abstract superclass of all actual implementations of the Abstract Window Toolkit. Where the Subclasses of the Toolkit class, are used to bind the various components to particular native toolkit implementations.

    The code like - java.awt.Dimension:- A Dimension class encapsulates the width and height of a component (in integer precision) in a single object. A class is associated with certain properties of components. The several methods defined by the Component class and the LayoutManager interface return a Dimension object.

    If, the connecting java application with the MySQL database, we need to follow steps to perform database connectivity: (In these examples we are using MySQL as the database. Therefore, we need to know following information's for the MySQL database):

    The Driver class: A driver class for the MySQL database is com.mysql.jdbc.Driver.

    The Connection URL: A connection URL for the MySQL database is JDBC:MySQL://localhost:3306/project where JDBC is the API, MySQL is the database, localhost is the server name on which MySQL is running, you may also use an IP address, 3306 is the port number and project is the database name. You may use any database, in such case, you need to replace the project with your database name.

    Username: A default username for the MySQL database is root.

    Password: A Password is given by the user at the time of installing the MySQL database. In that example, we are going to use the root as the password.

    [ To connect java application with the MySQL database mysqlconnector.jar file is required to be loaded.]

Java Codes:

RegistrationFormGUI.java

import java.awt.Color;

import java.awt.Dimension;

import java.awt.GridLayout;

import java.awt.Toolkit;

import java.sql.Connection;

import java.sql.DriverManager;

import java.sql.PreparedStatement; import java.sql.Statement;

import javax.swing.BorderFactory;

import javax.swing.ButtonGroup;

import javax.swing.JButton;

import javax.swing.JFrame;

import javax.swing.JLabel;

import javax.swing.JPanel;

import javax.swing.JRadioButton;

import javax.swing.JScrollPane; import javax.swing.JTable; import javax.swing.JTextField;

import javax.swing.table.DefaultTableModel;

@SuppressWarnings('serial')

public class RegistrationFormGUI extends JFrame{

      Connection con;       Statement stmt;      PreparedStatement preStatement,updatePreStmt;

      JLabel title, idLabel, nameLabel, genderLabel, addressLabel, contactLabel;

      JTextField idField, nameField, genderField, addressField, contactField;

      JButton registerButton, exitButton,updateButton,deleteButton,resetButton,

refresh;

      JRadioButton male, female;       ButtonGroup bg;

      JPanel panel;       JTable table;       DefaultTableModel model;

      JScrollPane scrollpane;       public RegistrationFormGUI() {            // TODO Auto-generated constructor stub

           super('REGISTRATION FORM');             setSize(770, 420);             setLayout(null);

            // Calling connect method, this will connect us to database             connect();

         // Defining Labels

            title = new JLabel('Registration Form');

            title.setBounds(60, 7, 200, 30);

            idLabel = new JLabel('ID');

            idLabel.setBounds(30, 50, 60, 30);

            nameLabel = new JLabel('Name');

            nameLabel.setBounds(30, 85, 60, 30);

            genderLabel = new JLabel('Gender');

            genderLabel.setBounds(30, 120, 60, 30);

            addressLabel = new JLabel('Address');

            addressLabel.setBounds(30, 155, 60, 30);

            contactLabel = new JLabel('Contact');

            contactLabel.setBounds(30, 190, 60, 30);

            // Defining ID field             idField = new JTextField();

            idField.setBounds(95, 50, 130, 30);             idField.setEnabled(false);

            // Defining Name field             nameField = new JTextField();

            nameField.setBounds(95, 85, 130, 30);

            // Defining Gender Buttons             male = new JRadioButton('Male');

            male.setBounds(95, 120, 60, 30);

            female = new JRadioButton('Female');

            female.setBounds(155, 120, 70, 30);

            bg = new ButtonGroup();

            bg.add(male);

            bg.add(female);

            addressField = new JTextField();

            addressField.setBounds(95, 155, 130, 30);

            contactField = new JTextField();

            contactField.setBounds(95, 190, 130, 30);



            // fixing all Label,TextField,RadioButton

            add(title);

            add(idLabel);

            add(nameLabel);

            add(genderLabel);

            add(addressLabel);

            add(contactLabel);

            add(idField);

            add(nameField);

            add(male);

            add(female);

            add(addressField);

            add(contactField);

            // Defining Exit Button

            exitButton = new JButton('Exit');

            exitButton.setBounds(25, 250, 80, 25);

            // Defining Register Button

            registerButton = new JButton('Register');

            registerButton.setBounds(110, 250, 100, 25);

            // Defining Update Button

            updateButton = new JButton('Update');

            updateButton.setBounds(110, 285, 100, 25);

            updateButton.setEnabled(false);

            // Defining Delete Button

            deleteButton = new JButton('Delete');

            deleteButton.setBounds(25, 285, 80, 25);

            deleteButton.setEnabled(false);

            // Defining Reset Button

            resetButton = new JButton('Reset');

            resetButton.setBounds(60, 320, 100, 25);

            resetButton.setEnabled(false);

            // fixing all Buttons

            add(exitButton);

            add(registerButton);

            add(updateButton);

            add(deleteButton);

            add(resetButton);

            // Defining Panel

            panel = new JPanel();

            panel.setLayout(new GridLayout());

            panel.setBounds(250, 20, 480, 330);

            panel.setBorder(BorderFactory.createDashedBorder(Color.blue));

            add(panel);

            // Defining Refresh Button

            refresh = new JButton('Refresh Table');

            refresh.setBounds(350, 350, 270, 15);

            add(refresh);

            //Defining Model for table

            model = new DefaultTableModel();             //Adding object of DefaultTableModel into JTable

            table = new JTable(model);

            //Fixing Columns move

            table.getTableHeader().setReorderingAllowed(false);

            // Defining Column Names on model

model.addColumn('S.No');

model.addColumn('ID');

model.addColumn('Name');

model.addColumn('Gender');

model.addColumn('Address'); model.addColumn('Contact');



            // Enable Scrolling on table

           scrollpane = new JScrollPane(table,JScrollPane.VERTICAL_SCROLLBAR_ALWAYS,

JScrollPane.HORIZONTAL_SCROLLBAR_ALWAYS);

            panel.add(scrollpane);

            //Displaying Frame in Center of the Screen

            Dimension dim = Toolkit.getDefaultToolkit().getScreenSize();

            this.setLocation(dim.width/2-this.getSize().width/2,

dim.height/2-this.getSize().height/2);

            setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

            setResizable(false);

            setVisible(true);

      }

      // Connection with Database

      public void connect(){

            try{

                  Class.forName('com.mysql.jdbc.Driver');

                  con =DriverManager.getConnection(

'jdbc:mysql://localhost:3306/test','root','1234');

                  stmt = con.createStatement();

                  preStatement = con.prepareStatement('insert into regForm(

name,gender,address,contact) values(?,?,?,?)');

            }catch(Exception e){

     System.out.print(e.getMessage());

   }

      }

}

 DynamicRegForm Class – DynamicRegForm.java

import javax.swing.*;

import javax.swing.table.DefaultTableModel;

import java.awt.event.*;

import java.sql.ResultSet;

@SuppressWarnings('serial')

public class DynamicRegForm extends RegistrationFormGUI{

      String gender = '';

      ResultSet rst,rstLast;

      Object[][] data;

      int serialNo;

      String SHOW = 'Show';

      RegistrationFormGUI formGUIObject;

      // Defining Constructor

      DynamicRegForm(){

            nameField.addKeyListener(new KeyAdapter() {

                  public void keyTyped(KeyEvent e) {

                  if(nameField.getText().length()>=15)

                        e.consume();

                  }

            });

            male.addActionListener(new ActionListener() {

                  public void actionPerformed(ActionEvent e) {

                        gender = 'Male';

                  }             });

            female.addActionListener(new ActionListener() {

                  public void actionPerformed(ActionEvent e) {

                        gender = 'Female';

                  }

            });

            addressField.addKeyListener(new KeyAdapter() {

                  public void keyTyped(KeyEvent e) {

                  if(addressField.getText().length()>50)

                        e.consume();

                  }

            });

            contactField.addKeyListener(new KeyAdapter() {

                  public void keyTyped(KeyEvent e) {

                        char c = e.getKeyChar();

                        if (!((c >= '0') && (c <= '9') ||

(c == KeyEvent.VK_BACK_SPACE) ||

(c == KeyEvent.VK_DELETE))) {

                              // getToolkit().beep();

                              e.consume();

                        }

                        if(contactField.getText().length()>9)

                              e.consume();

                  }

            });

            exitButton.addActionListener(new ActionListener(){

                  public void actionPerformed(ActionEvent arg0) {

                        try{

                              con.close();

                              System.exit(0);

                        }catch(Exception ex){

System.out.println(ex.getMessage());

}

                  }

            });

            registerButton.addActionListener(new AbstractAction(SHOW){

                   public void actionPerformed(ActionEvent ae){

                         try{

                            if (ae.getSource() == registerButton) {

                              if (nameField.getText().equals(''))

                                   JOptionPane.showMessageDialog(idField,

'Please provide Name_Field');

                                else if(addressField.getText().equals(''))

                                   JOptionPane.showMessageDialog(idField,

'Please provide Address_Field');

                                else if(contactField.getText().equals(''))                                    JOptionPane.showMessageDialog(idField, 'Please provide Contact_Field');

                                else if(gender.equals(''))

                                 JOptionPane.showMessageDialog(idField, 'Please select Gender');

                                else {

                               //Fetching column values from Database

                               preStatement.setString(1,nameField.getText());

                                 preStatement.setString(2,gender);

                                 preStatement.setString(3,addressField.getText());

                                 preStatement.setString(4,contactField.getText());

                               //Executing MySQL Update Query

                                int i = preStatement.executeUpdate();

                                 if(i==1){

                                  JOptionPane.showMessageDialog(panel,

'Successfully Registered');

                    }



                                 // showing last row

                               rstLast = stmt.executeQuery('select *from regForm');

                                rstLast.last();

                                String string = serialNo++ +',

'+String.valueOf(rstLast.getLong(1))+',

'+rstLast.getString(2)+',

'+rstLast.getString(3)+',

'+rstLast.getString(4)+',

'+rstLast.getString(5);

                                 Object[] row = null;

                                row = string.split(',');

                                 model.addRow(row);

                                 panel.revalidate();



                                 // fields are blank

                                 blankFields();

                               }

                              }

                       }catch(Exception ex){

System.out.println(ex.getMessage());

}

                   }

            });



            updateButton.addActionListener(new AbstractAction(SHOW){

              public void actionPerformed(ActionEvent e){

                  if (nameField.getText().equals(''))

                        JOptionPane.showMessageDialog(idField,

'Please provide Name_Field');

                  else if(addressField.getText().equals(''))

                        JOptionPane.showMessageDialog(idField,

'Please provide Address_Field');

                  else if(contactField.getText().equals(''))

                        JOptionPane.showMessageDialog(idField,

'Please provide Contact_Field');

                  else if(gender.equals(''))

                        JOptionPane.showMessageDialog(idField,

'Please select Gender');

                  else {

                              int r = table.getSelectedRow();

                              try{

                              if(r>=0){

                                if(male.isSelected())

                                   gender = male.getText();                                  else                                     gender = female.getText();

                                    String id = (String)table.getModel().

getValueAt(r,1);

                                    updatePreStmt = con.prepareStatement(

'update regForm set name=?,

gender=?,address=?,contact=?

where id='+id);

                                 updatePreStmt.setString(1,nameField.getText());

                                  updatePreStmt.setString(2,gender);

                                  updatePreStmt.setString(3,addressField.getText());

                                  updatePreStmt.setString(4,contactField.getText());

                                  int i = updatePreStmt.executeUpdate();

                                  if(i==1){

                                     table.setValueAt(nameField.getText(),r,2);

                                     table.setValueAt(gender, r, 3);

                                     table.setValueAt(addressField.getText(),r,4);

                                     table.setValueAt(contactField.getText(), r, 5);

                                  }

                                  else JOptionPane.showMessageDialog(panel,

'ID does't Exists in Database');

                              }

}catch(Exception ex){

System.out.println('Update section: '+

ex.getMessage());

}

                        }

              }

          });



            //Registering Anonymous Listener Class

            deleteButton.addActionListener(new AbstractAction(SHOW){

              public void actionPerformed(ActionEvent e){

                  try{

                  //Getting Selected Row No

                  int r = table.getSelectedRow();

                  if(r>=0){

                        if (JOptionPane.showConfirmDialog(panel,

'Are you sure want to Delete this 'RECORD' ?','WARNING',

JOptionPane.YES_NO_OPTION) == JOptionPane.YES_OPTION){

                              String id = (String)table.getModel().getValueAt(r,1);



                              // Executing MySQL Update Command

                              int i = stmt.executeUpdate('delete from regForm

where id='+id);

                              if(i==1){

                                    model.removeRow(r);



                                    // fields are blank

                                    blankFields();

                                    registerButton.setEnabled(true);

                                    deleteButton.setEnabled(false);

                                    updateButton.setEnabled(false);

                              }

                        }

                  }

}catch(Exception ex){

System.out.println(ex.getMessage());

}

              }

          });



           //Registering Anonymous Listener Class

            resetButton.addActionListener(new ActionListener(){

                  public void actionPerformed(ActionEvent arg0) {

                        // calling method resetFields()

                        resetFields();

                        registerButton.setEnabled(true);

                        updateButton.setEnabled(false);

                        deleteButton.setEnabled(false);

                        resetButton.setEnabled(false);

                  }

            });

            // Registering Anonymous Listener Class

            refresh.addActionListener(new ActionListener() {

                  public void actionPerformed(ActionEvent arg0) {

                        //calling refresh() method

                        refreshTable();

                  }

            });

            //Registering Anonymous Listener Class

            table.addMouseListener(new MouseListener(){

                  public void mouseClicked(MouseEvent arg0){

                        //Getting Selected Row No

                  int r = table.getSelectedRow();

                  if(r>=0){

                        deleteButton.setEnabled(true);

                        updateButton.setEnabled(true);

                        resetButton.setEnabled(true);

                        registerButton.setEnabled(false);

                        //Fetching records from Table on Fields

                        idField.setText(''+table.getModel().getValueAt(r,1));

                        nameField.setText(''+table.getModel().getValueAt(r,2));

                        if(table.getModel().getValueAt(r,3).equals('Male'))

                              male.setSelected(true);

                        else

                              female.setSelected(true);

                        addressField.setText(''+table.getModel().getValueAt(r,4));

                        contactField.setText(''+table.getModel().getValueAt(r,5));

                  }

                  }

//@Override

                  public void mouseReleased(MouseEvent arg0) {}

//@Override

                   public void mousePressed(MouseEvent arg0) {}

// @Override

                  public void mouseExited(MouseEvent arg0) {}

//@Override

                  public void mouseEntered(MouseEvent arg0) {}

            });

            // Displaying rows into the Frame table

            addRows();

      }

      // addRows method

      private void addRows(){

            try{

            Object[] row = null;

            //Generating Serial No

            serialNo=1;

            rst = stmt.executeQuery('select *from regForm');

            while(rst.next()){

                  String string = serialNo++ +','+String.valueOf(rst.getLong(1))+',

'+rst.getString(2)+','+rst.getString(3)+',

'+rst.getString(4)+','+rst.getString(5);

                  row = string.split(',');

                  // Adding records in table model

                  model.addRow(row);

            }

            panel.revalidate();

            }catch(Exception ex){ System.out.println(ex.getMessage()); }

      }

      private void resetFields(){



            //calling method blankfields()

            blankFields();

      }



      // refresh method

      private void refreshTable(){



            // removing all the rows of the table

            DefaultTableModel dm = (DefaultTableModel)table.getModel();

            dm.getDataVector().removeAllElements();

            System.out.println('Refresh Table');

            //calling method addRows

            addRows();

      }

      private void blankFields(){

            // fields will be blank

            idField.setText('');

            nameField.setText('');

            gender = '';

            bg.clearSelection();

            addressField.setText('');

            contactField.setText('');

      }

      // main() method

      public static void main(String[] args) {

            new DynamicRegForm();

      }     }



 Running the Application

Simple Registration Form using JAVA Swing - Step2 (Connecting GUI  with MySQL Database using JDBC)



Next, we will learn about : Creating Dynamic Objective Test Application through Swing in JAVA ( Using MySQL Database )

Last updated:5/16/2020 1:33:44 AM

9 Comments

Tejas Rane
Tejas Rane

it shows the error that define the main method in the program i have tried in different ways but its not working give me a solution plzz......

Tarun Kumar
Tarun Kumar

I think the null problem is coming because the database table format is not matching. remember one thing my table name is 'regform'. Now, use below script to create table in your mysql database:
CREATE TABLE IF NOT EXISTS `regform` (
  `id` double NOT NULL AUTO_INCREMENT,
  `name` text NOT NULL,
  `gender` text NOT NULL,
  `address` text NOT NULL,
  `contact` text NOT NULL,
  PRIMARY KEY (`id`)
);
and after you can set a default value for auto_increment, script is here:
alter table regform auto_increment = 1000;
(default value for auto_increment script is not mandatory)
that's it!

Sagarsingh Jadhav
Sagarsingh Jadhav

Even I was facing the same issue. Getting null at the point when I execute the program. It was because the java was not able to read the driver from Class.forName();  Adding "mysql-connector-java-5.1.25-bin.jar" to project build path resolved the problem.


kapeesh gupta
kapeesh gupta

 Dear,


 I have written this code but code is not running. Fetching error something like this:

 Exception in thread "main" java.lang.NullPointerException
at xyz.Xyz.<init>(Xyx.java:59)
at xyz.Abc.<init>(Abc.java:20)
at xyz.Abc.main(Abc.java:105)

Please give me solution asap.

Thanks

pavan kumar
pavan kumar

while registering d data  into the table, it is showing an error message as

 parameter out of range.How to solve that.

???? ????
???? ????

I ran the program

the issue is that i always get this result :

ORA-00947: not enough values

do you have a solution ?


Leave Comment
