Where The Android provides the view ListView which is capable of displaying a scrollable list of items. These ListView gets the data to display via an adapter. The adapter must extend BaseAdapter and is responsible for providing the data model for the list and for converting the data into the fields of the list. Here We can extend the activity ListActivity which simplifies the handling of a ListView. The ListActivity extends Activity and provides simplified handling of lists. For example, you have a predefined method if someone clicks on a list element. ListActivity contains a
ListAdapter that is responsible for managing the data. These adapters must be set in the onCreate() method of your Activity via the method setListAdapter().
If the user selects in the list a list entry the method onListItemClick() will be called. This method allows for accessing the selected element.
In this article, I am going to create a scrollable list of student names that are read from a string array. When a list item is selected, a toast message will display the name of the item in the list.
Create a project
- Start a new project named ListViewDemo.
- Open the main.xml file inside the res/layout/. Insert the following :
<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:padding="10dp"
android:textSize="16sp">
</TextView>
This file defines the layout for each item that will be placed in the ListView.
- Open the strings.xml file inside the res/values/. Insert the following:
<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="hello">Hello World, ListViewDemoActivity!</string>
<string name="app_name">ListViewDemo</string>
<string-array name="students_name">
<item>Rohit</item>
<item>Rati</item>
<item>Amit</item>
<item>Arun</item>
<item>Sapna</item>
<item>Sounak</item>
<item>Anil</item>
<item>Kashif</item>
</string-array>
</resources>
- Open the ListViewDemoActivity.java and make the class extend ListActivity instead of Activity. Insert the following code:
import android.app.ListActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;
public class ListViewDemoActivity extends ListActivity {
@Override
public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
String[] students = getResources().getStringArray(R.array.students_name); setListAdapter(new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1,students));
}
/** Called when the listview item is selected. */l
protected void onListItemClick(ListView l,View v,int position,long id) {
Object o = this.getListAdapter().getItem(position);
String keyword = o.toString();
Toast.makeText(this, "You selected: " + keyword, Toast.LENGTH_LONG).show();
}
}
The setListAdapter(ListAdapter) automatically adds a ListView to fill the entire screen of the ListActivity. This method takes an
ArrayAdapter, which manages the array of list
items that will be placed into the ListView.
The onListItemClick(ListView, View, int, long) called when the user selects an item from the ListView and displays the selected item name.
- Run the application.

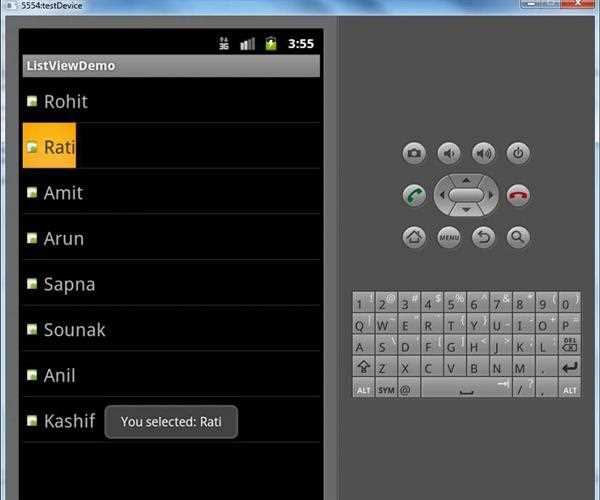

- You can scroll the list, then click an item to see a message. You should see something like this:
After creating ListView with a simple layout, create a ListView with its own layout:
Create the following layout file "mylayout.xml" in the res/layout folder of your project:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="wrap_content" android:layout_height="wrap_content"> <ImageView android:id="@+id/icon" android:layout_height="wrap_content" android:src="@drawable/icon" android:layout_width="22px" android:layout_marginTop="4px" android:layout_marginRight="4px" android:layout_marginLeft="4px">
</ImageView>
<TextView android:text="@+id/TextView01" android:layout_width="wrap_content" android:layout_height="wrap_content" android:id="@+id/label" android:layout_marginTop="20px"
android:layout_marginLeft="4px"
android:textSize="30px">
</TextView></LinearLayout>
Change your activity "ListViewDemoActivity" to the following. This is almost the same coding as in the previous example, the only difference is that we are using our own layout in the ArrayAdapter and telling the adapter which UI element should contain the text.
import android.app.ListActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;
public class ListViewDemoActivity extends ListActivity {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState)
{
super.onCreate(savedInstanceState);
String[] students = getResources().getStringArray(R.array.students_name); setListAdapter(new
ArrayAdapter<String>(this,R.layout.mylayout,R.id.label,students));
}
protected void onListItemClick(ListView l,View v,int position,long id) {
Object o = this.getListAdapter().getItem(position);
String keyword = o.toString();
Toast.makeText(this, "You selected: " + keyword, Toast.LENGTH_LONG).show();
}
}
Now the output looks like below:
