Chart Helper in ASP.NET MVC


ASP.NET MVC ASP.NET MVC
Ratings:
1 Comment(s)
 13264  View(s)
Rate this:

Chart Helper in ASP.NET MVC

ASP.NET MVC 3 provides various helper methods that are used for different purposes. Chart helper method is one them, which makes it very easy to create charts in ASP.NET MVC. In this article, I will show you how you can use Chart helper in ASP.NET MVC. I will also show you how to use the themes provided by ASP.NET MVC to style your charts.  Then I will show how to create a custom theme for making your chart background as transparent.

Open studio 2010 and create a new ASP.NET MVC 3 Web Application (Razor) project as seen below:

Chart Helper in ASP.NET MVC

Choose Razor as the view engine and click OK.Chart Helper in ASP.NET MVC

Add a controller in your project and give name as HomeController as shown in the below figure:Chart Helper in ASP.NET MVC

After adding a Controller adds the code as shown below:

using System.Web.Mvc;

using System.Web.Helpers;



namespace ChartDemo.Controllers

{

    public class HomeController : Controller

    {

        public ActionResult Index()

        {

            return View();

        }

        public ActionResult Chart()

        {

            new Chart(width: 400, height: 200, theme: ChartTheme.Green)

                 .AddSeries(

                      chartType: "column",

                   xValue: new[] { "Math", "English", "Computer", "Science" },

                     yValues: new[] { "80", "90", "78", "68" })

                   .Write("png");

            return null;

        }



    }

}



The chart is rendered as an image, to use the action you need to add an HTML image to your page like this:

<html>

<head>

    <title>Index</title>

</head>

<body>

    <div>

        <img src="@Url.Action("Chart")" alt="" />

    </div>

</body>

</html>



The chart is displayed on the page as follows:Chart Helper in ASP.NET MVC

Now, let's add a custom theme which set the background color of your chart to transparent and chart area background color to Aqua:

public ActionResult Chart()

{

    string myTheme =

           @"<Chart BackColor=""Transparent"" ForeColor=""Navy"">

                      <ChartAreas>

                             <ChartArea Name=""Default"" BackColor=""Aqua"" ></ChartArea>

                       </ChartAreas>

             </Chart>";

            new Chart(width: 400, height: 200, theme: myTheme)

                 .AddSeries(

                      chartType: "column",

                   xValue: new[] { "Math", "English", "Computer", "Science" },

                     yValues: new[] { "80", "90", "78", "68" })

                   .Write("png");

            return null;
}

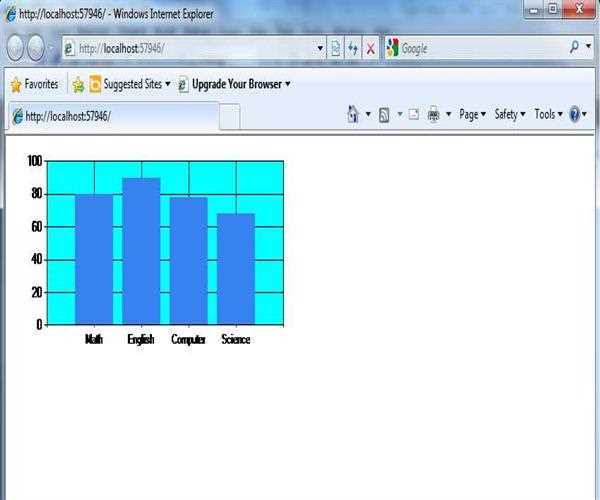

Run this application again, you will see the following screen:Chart Helper in ASP.NET MVC

Thanks for reading this article and I think this will help you a lot.
