Show List View in Model pop-up on Button click in Andriod

Android Android Activity  Android Layout  Android Listview  Android AlertDialog
1 Comment(s)
 7595  View(s)
Rate this:

Show List View in Model pop-up on Button

Click in Android

In my previous post, we have implemented a simple calculator app with the help of spinner component : Simple Calculator App in Android

In this article we are going to implement a simple button which when clicked displays an alert pop-up having list of names. When we select the name, this names will be set to the button’s text.


1.       Ellipse SDK

2.       Android SDK

3.       ADT plugin

Install and configure the above utilities.

Now create a new Android project namely “ItemDialog”.

Add Widgets to our GUI:

Now, we need to add views in our view groups, i.e. add widgets to our GUI.

 We need a button  which will be clicked to see the names.

For this, navigate to res/Layout/main.xml from package explorer in Eclipse. Open main.xml

Add following code into it:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"








    tools:context=".MainActivity" >











Now our app GUI will look something like this:


Adding String values for GUI widgets:


Now we need to add string values for our GUI widgets

Now, open res/values/string.xml from package explorer and add following code in it:

<?xml version="1.0" encoding="utf-8"?>



    <string name="app_name">ItemDialog</string>

    <string name="action_settings">Settings</string>

    <string name="name">Names</string>



Adding behavior to the Button:

 To add behavior to our app we need to pop up an alert dialog consist of list of names when the button is clicked, and the selected items names get set for the button’s text

So we implement actions on button click by OnClickListener().

So our final code for mainActivity class will look like this:


package com.example.itemdialog;


import android.os.Bundle;

import android.app.Activity;

import android.app.AlertDialog;

import android.app.AlertDialog.Builder;

import android.content.Context;

import android.content.DialogInterface;

import android.view.Menu;

import android.view.View;

import android.view.View.OnClickListener;

import android.widget.Button;


public class MainActivity extends Activity  {

      private Button button;

      Context context = this;



      protected void onCreate(Bundle savedInstanceState) {




            //button's reference

            button = (Button)findViewById(R.id.button);


            //setting button's click and implementing the onClick method

            button.setOnClickListener(new OnClickListener() {



                  public void onClick(View v) {

                        //List of items to be show in  alert Dialog are stored in array of strings/char sequences

                        final String[] items = {"AAAAAA", "BBBBBBB", "CCCCCCC", "DDDDDDDD"};


                        AlertDialog.Builder builder = new AlertDialog.Builder(context);


                        //set the title for alert dialog

                        builder.setTitle("Choose names: ");


                        //set items to alert dialog. i.e. our array , which will be shown as list view in alert dialog

                        builder.setItems(items, new DialogInterface.OnClickListener() {



                              public void onClick(DialogInterface dialog, int item) {

                                    // setting the button text to the selected itenm from the list





                        //Creating CANCEL button in alert dialog, to dismiss the dialog box when nothing is selected



                    .setNegativeButton("CANCEL", new DialogInterface.OnClickListener() {



                              public void onClick(DialogInterface dialog, int id) {

                                    //When clicked on CANCEL button the dalog will be dismissed





                        // Creating alert dialog

                        AlertDialog alert = builder.create();


                        //Showing alert dialog










      public boolean onCreateOptionsMenu(Menu menu) {

            // Inflate the menu; this adds items to the action bar if it is present.

            getMenuInflater().inflate(R.menu.main, menu);

            return true;




 Running the Application

Now run the project, emulator will start and click on the Show Popup button. It will show an model pop-up, consist of list of names


Now select an item from the list, and voila!! ,  the button name changed to the item selected.

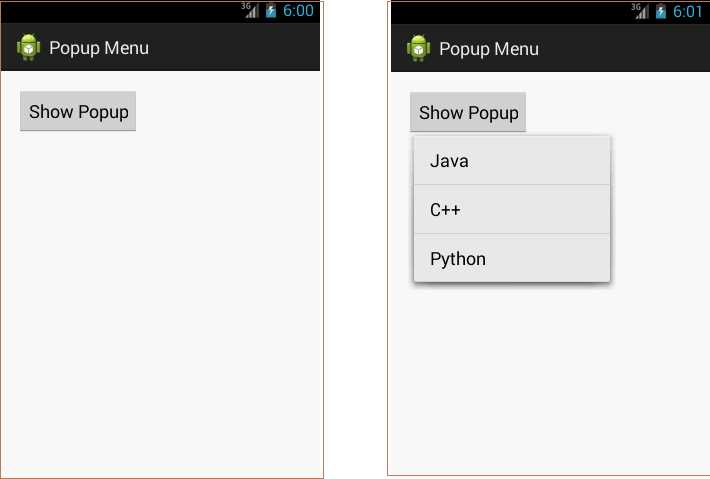

 Next we move to menus in android and see how to implement  Pop- up Menus in Show Simple Pop-up Menu in Android

Thanks for reading this post.

Happy Coding!! J
